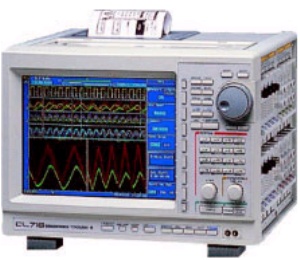

Yokogawa Dl708E Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Yokogawa DL708E Oscilloscope is a highly advanced and versatile instrument used for electronic testing and measurement. It is equipped with a large, high-resolution display that provides clear and accurate waveform representation. With a bandwidth of up to 100 MHz, it is capable of capturing fast and complex waveforms. The DL708E offers a wide range of measurement functions, including voltage, frequency, and time measurements, making it suitable for various applications in electronics, telecommunications, and research laboratories. It also provides advanced triggering options, allowing for precise waveform capture and analysis. The oscilloscope is user-friendly, with a intuitive interface and easy-to-use controls, enabling efficient operation and data interpretation. Overall, the Yokogawa DL708E Oscilloscope is a reliable and powerful tool for professionals in the field of electronics and electrical engineering.
Specifications
– Bandwidth: 100 MHz
– Channels: 4
– Sample rate: 500 MS/s
– Memory depth: 12 Mpts
– Vertical resolution: 8 bits
– Rise time: ≤ 3.5 ns
– Input impedance: 1 MΩ ± 1%, 15 pF ± 3 pF
– Maximum input voltage: 400 V (DC + AC peak)
– Time base range: 2 ns/div to 100 s/div
– Display: 8.4-inch TFT LCD color display
– Trigger types: edge, pulse width, video, slope, Runt, pattern, state, delay, event, sequence, and TV
– Connectivity: USB, LAN, GPIB (optional)
– Power supply: 100-240 VAC, 50/60 Hz
– Dimensions: 340 mm × 177 mm × 70 mm
– Weight: 2 kg
