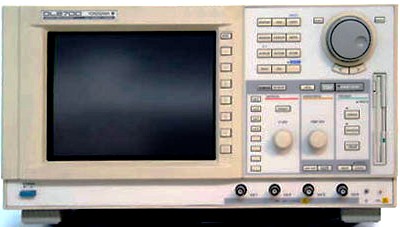

Yokogawa Dl2700 150Mhz, 2-8 Channel Digital Oscilloscope

Description

The 150MHz bandwidth and dual to eight channel capacity of the Yokogawa DL2700 make it a high-performance digital oscilloscope. Widely employed in a variety of industries and research applications, it is a dependable and adaptable instrument. Waveform analysis may be done with precision and detail thanks to its extensive memory and high sampling rate. A wide range of sophisticated features, including automatic measurements, math operations, and waveform recording capabilities, are available with the DL2700, along with an intuitive user interface. Both benchtop and field use are appropriate for it due to its small size and portability. According to specialists who want accurate and thorough oscilloscope readings, the Yokogawa DL2700 is an effective and strong instrument.

 Specifications

– Model: Yokogawa DL2700
– Bandwidth: 150MHz
– Channels: 2-8 (configurable)
– Sample Rate: Up to 1 GS/s (Giga-samples per second)
– Memory Depth: Up to 16 Mpoints per channel
– Vertical Resolution: 8 bits
– Time Base Range: 5 ns/div to 50 s/div
– Trigger Types: Edge, Pulse Width, Video, Slope, Runt, Window, Pattern, Delay, Time Out
– Display: 8.4-inch color TFT LCD
– Input Impedance: 1 MΩ ± 1%, 14 pF ± 1 pF
– Input Coupling: AC, DC, GND
– Input Voltage Range: 1 mV/div to 10 V/div
– Input Sensitivity: 2 mV/div to 10 V/div ± 2%
– Maximum Input Voltage: 300 Vrms CAT II
– Probe Compensation Range: 10 pF to 35 pF
– Connectivity: USB, GPIB (optional)
– Dimensions: 330 mm (W) x 177 mm (H) x 160 mm (D)
– Weight: 4.2 kg (9.3 lbs)

Yokogawa DL2700 are also available with the following specs and model:

• 700821 Oscilloscope – Digital – 2 Ch 150 MHz – Long Memory
• 700822 Oscilloscope – Digital – 2 Ch 150 MHz – Long Memory
• 700823 Oscilloscope – Digital – 2 Ch 150 MHz – Long Memory
• 700841 Oscilloscope – Digital – 4 Ch 150 MHz – Long Memory
• 700842 Oscilloscope – Digital – 4 Ch 150 MHz – Long Memory
• 700843 Oscilloscope – Digital – 4 Ch 150 MHz – Long Memory
• 700861 Oscilloscope – Digital – 6 Ch 150 MHz – Long Memory
• 700862 Oscilloscope – Digital – 6 Ch 150 MHz – Long Memory
• 700863 Oscilloscope – Digital – 6 Ch 150 MHz – Long Memory
• 700881 Oscilloscope – Digital – 8 Ch 150 MHz – Long Memory
• 700882 Oscilloscope – Digital – 8 Ch 150 MHz – Long Memory
• 700883 Oscilloscope – Digital – 8 Ch 150 MHz – Long Memory
