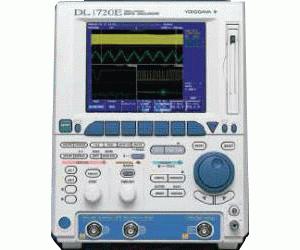

Yokogawa Dl1720E Analog Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Yokogawa DL1720E Analog Digital Oscilloscope is a highly advanced and versatile instrument that combines analog and digital technologies to provide accurate and detailed measurements. With a bandwidth of up to 200 MHz and a maximum sampling rate of 1 GS/s, this oscilloscope is capable of capturing high-frequency signals with precision. It features a large color display that allows users to easily visualize and analyze waveforms, while its intuitive user interface ensures effortless operation. Equipped with advanced triggering capabilities and a wide range of measurement functions, the DL1720E is suitable for various applications in research, development, and production environments. Its compact design and robust construction make it a reliable tool for professionals in the electronics industry.
Specifications
– Bandwidth: 200 MHz
– Sampling Rate: 1 GS/s
– Channels: 2
– Vertical Resolution: 8 bits
– Input Impedance: 1 MΩ || 15 pF
– Maximum Input Voltage: 400 Vpeak
– Rise Time: <1.8 ns
– Trigger Modes: Edge, Pulse Width, Video, Pattern, Slope, Event, RS-232/422/485
– Memory Depth: 2 Mpoints per channel
– Display: 8.4″ TFT LCD color display
– Connectivity: USB, Ethernet, GPIB (optional)
– Power Supply: 100-120 VAC, 200-240 VAC (±10%), 50/60 Hz, 45 VA max.
– Dimensions: 330 mm (W) x 177 mm (H) x 150 mm (D)
– Weight: 3.9 kg
