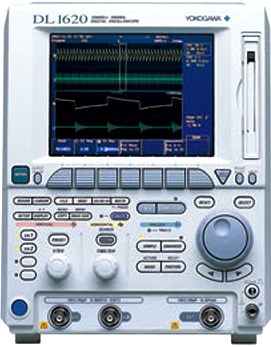

Yokogawa Dl1620 2 Channel Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
An extremely sophisticated and trustworthy tool for measuring and analyzing electronic signals is the Yokogawa DL1620 2 Channel Digital Oscilloscope. It has a high-resolution display screen with detailed and accurate waveform representations. It is perfect for a variety of applications in the domains of electronics, telecommunications, and research because of its two-channel capabilities, which permits the simultaneous measurement and comparison of two signals. Many measurement options are available with the DL1620, such as voltage measurements, frequency analysis, and time domain analysis. It also has a user-friendly interface and sophisticated triggering capabilities, which make it simple to use and navigate through the many features. In general, the Yokogawa DL1620 2 Channel Digital Oscilloscope is a superb tool that offers precise and accurate measurements, making it a great option for professionals and enthusiasts.
Specifications
– Model: Yokogawa DL1620
– Type: Digital Oscilloscope
– Channels: 2
– Bandwidth: 200 MHz
– Sampling Rate: 1 GS/s
– Vertical Resolution: 8 bits
– Input Impedance: 1 MΩ ± 2%
– Maximum Input Voltage: 400 V (DC + AC peak)
– Vertical Sensitivity: 2 mV/div – 10 V/div
– Time Base Range: 5 ns/div – 5 s/div
– Trigger Modes: Auto, Normal, Single, and External
– Trigger Sensitivity: 1 div or 2% of full-scale (DC to 100 MHz), 0.5 div or 4% of full-scale (100 MHz to 200 MHz)
– Display: 5.7-inch color TFT LCD
– Data Storage: Internal storage for up to 10 waveforms and setups
– Connectivity: USB and RS-232 ports for data transfer and remote control
– Power Supply: 100-240 V AC, 50/60 Hz
– Dimensions: 330 mm (W) x 177 mm (H) x 130 mm (D)
– Weight: Approximately 2.6 kg
