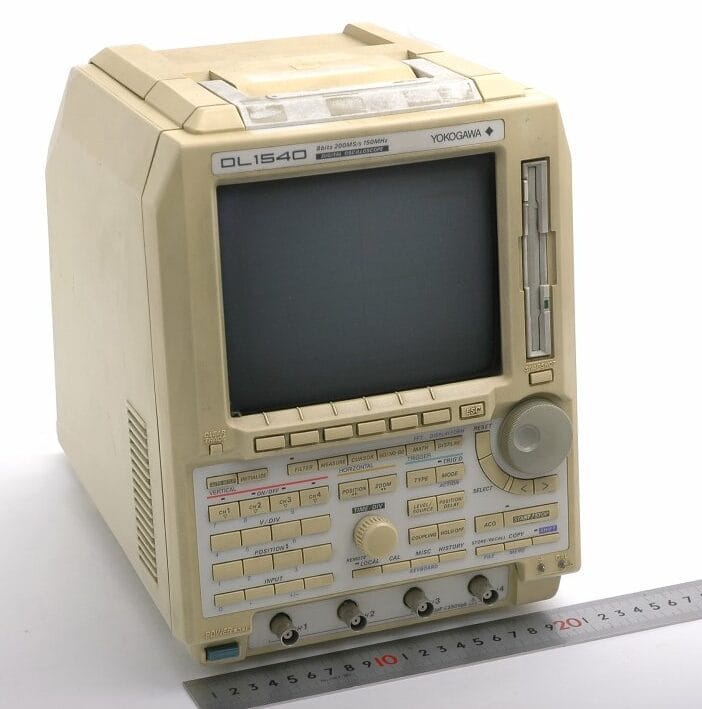

Yokogawa 701510 4-Ch,120K Word,200Ms/S,Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Yokogawa 701510 Digital Oscilloscope is a high-performance instrument designed for precise waveform observation and analysis in various electronic and electrical applications. Featuring four channels, this oscilloscope provides comprehensive measurement capabilities with a memory depth of 120K words per channel and a sampling rate of up to 200 megasamples per second (Ms/s). It is well-suited for capturing and analyzing fast transients, repetitive signals, and complex waveforms, making it an essential tool for engineers and technicians in research, development, and troubleshooting environments. The Yokogawa 701510 is known for its user-friendly interface, advanced triggering options, and high-resolution display, ensuring accurate and efficient signal analysis.
Specifications
- Channels: 4
- Memory Depth: 120K words per channel
- Sampling Rate: Up to 200 Ms/s
- Bandwidth: Typically up to 100 MHz (model dependent)
- Vertical Resolution: 8 bits
- Input Impedance: 1 MΩ ±1%
- Input Coupling: AC, DC, GND
- Trigger Types: Edge, Pulse, Video, and more
- Display: High-resolution color LCD
- Connectivity: USB, LAN, and GPIB for remote control and data transfer
- Power Supply: 100-240V AC, 50-60 Hz
- Dimensions: Compact and portable design, rack-mountable
- Weight: Approx. 6 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Additional Features: Math functions, FFT analysis, and waveform memory for enhanced analysis
