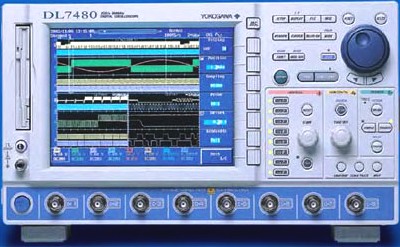

Yokogawa 700863 6-Ch,8M W/Ch,500Ms/S,Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Yokogawa 700863 Digital Oscilloscope is a high-performance instrument designed for precise and detailed waveform analysis in a variety of electronic applications. Featuring six channels, each with a significant memory depth of 8 million words (Mwords), and a sampling rate of up to 500 megasamples per second (Ms/s), this oscilloscope is capable of handling complex signal analysis tasks efficiently. The 700863 is ideal for engineers and technicians involved in circuit design, troubleshooting, and development. Its advanced triggering options, extensive memory capacity, and high-resolution display ensure accurate data capture and comprehensive analysis. The oscilloscope’s robust connectivity options and user-friendly interface further enhance its utility in both laboratory and field environments.
Specifications
- Channels: 6
- Memory Depth: 8M words per channel
- Sampling Rate: Up to 500 Ms/s
- Bandwidth: Typically up to 200 MHz (model dependent)
- Vertical Resolution: 8 bits
- Input Impedance: 1 MΩ ±1%
- Input Coupling: AC, DC, GND
- Trigger Types: Edge, Pulse, Video, Window, and more
- Display: High-resolution color LCD
- Connectivity: USB, LAN, and GPIB for remote control and data transfer
- Power Supply: 100-240V AC, 50-60 Hz
- Dimensions: Rack-mountable design for laboratory use
- Weight: Approx. 7 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Additional Features: Math functions, FFT analysis, advanced waveform memory, and comprehensive analysis tools
