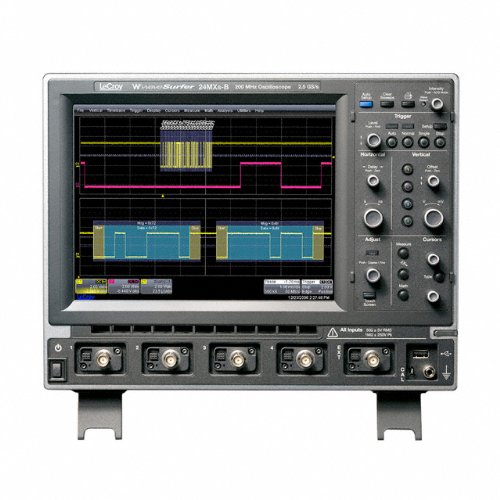

Teledyne Lecroy Wavesurfer 24Mxs Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne LeCroy WaveSurfer 24MXs is a powerful digital oscilloscope that offers exceptional performance and flexibility. With a bandwidth of up to 2 GHz and a sample rate of 10 GS/s, it allows for detailed waveform analysis and accurate measurements. The large 12.1-inch touchscreen display provides a user-friendly interface, making it easy to navigate through the various functions and settings. The WaveSurfer 24MXs also features advanced triggering capabilities and a deep memory of up to 500 Mpts, enabling the capture and analysis of complex signals. Additionally, it offers a wide range of analysis tools, including FFT, math functions, and protocol decoding, making it suitable for a variety of applications such as electronics testing, research and development, and troubleshooting. Overall, the Teledyne LeCroy WaveSurfer 24MXs is a reliable and versatile digital oscilloscope that delivers high-performance results.
Specifications
– Bandwidth: 200 MHz
– Channels: 4
– Sample Rate: 5 GS/s
– Memory Depth: 12.5 Mpts
– Vertical Resolution: 8 bits
– Waveform Capture Rate: 400,000 wfms/s
– Display: 10.1″ capacitive touch screen
– Connectivity: USB, LAN, GPIB, and HDMI
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Window, Transition, Setup and Hold, Logic, Serial, and Video
– Math Functions: FFT, Addition, Subtraction, Multiplication, Division, Integration, Differentiation, Square Root, Exponential, Logarithm, and more
– Serial Bus Decoding: I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553, and more
– Power Analysis: Voltage, Current, and Power Measurements
– Spectrum Analysis: Frequency Domain Analysis with FFT
– Advanced Signal Analysis: Eye Diagram, Jitter Analysis, Histogram, and more
– Waveform Generator: Built-in function generator with 13 predefined waveforms and custom waveforms up to 128k points
– Dimensions: 335 mm x 189 mm x 150 mm
– Weight: 3.2 kg
