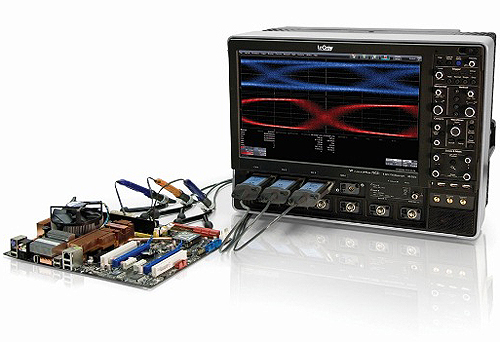

Teledyne Lecroy Wavemaster 820Zi Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne LeCroy Wavemaster 820Zi Digital Oscilloscope is a powerful and versatile instrument used in a wide range of industries including electronics, telecommunications, and aerospace. With its advanced technology and high performance capabilities, it allows engineers and technicians to accurately capture and analyze complex waveforms and signals. The 820Zi offers an impressive bandwidth of up to 20 GHz, coupled with a sampling rate of up to 120 GS/s, ensuring precise measurements even for the most demanding applications. Its large display and intuitive user interface make it easy to navigate and interpret data, while its extensive triggering options and advanced analysis tools provide valuable insights into signal characteristics and anomalies. Overall, the Teledyne LeCroy Wavemaster 820Zi Digital Oscilloscope is a reliable and efficient tool that empowers professionals to effectively troubleshoot and optimize their electronic systems.
Specifications
– Bandwidth: 20 GHz
– Sample rate: 80 GS/s
– Memory depth: 128 Mpts
– Channels: 4 analog + 16 digital
– Vertical resolution: 12 bits
– Rise time: <17.5 ps
– Input impedance: 50 ohms
– Input voltage range: ±1 V
– Trigger types: edge, pulse width, runt, setup/hold, serial data, video, pattern, and others
– Display: 15.3-inch touchscreen
– Connectivity: USB, LAN, HDMI, VGA, GPIB
– Power: 100-240 VAC, 50/60 Hz
– Weight: 36.4 lbs
– Dimensions: 17.6 x 8.7 x 16.9 inches
