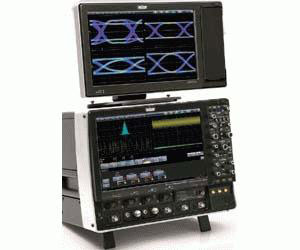

Teledyne Lecroy Wavemaster 813Zi Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy Wavemaster 813Zi Digital Oscilloscope is a powerful and versatile tool used in the field of electronics for waveform analysis and measurement. With its high-speed sampling rate and large memory depth, it enables detailed analysis of complex signals, making it ideal for various applications such as research and development, testing, and troubleshooting. The oscilloscope offers a wide range of advanced features, including a large color touch screen display, intuitive user interface, and extensive triggering options. Its ability to capture and analyze waveforms in real-time allows for precise measurements and accurate analysis of signal characteristics. Overall, the Teledyne Lecroy Wavemaster 813Zi Digital Oscilloscope is a reliable and indispensable instrument for professionals in the electronics industry.
Specifications
– Bandwidth: 13 GHz
– Sample Rate: 120 GS/s
– Channels: 4
– Memory Depth: 20 Mpts per channel
– Display: 15.3-inch color touchscreen
– Vertical Resolution: 8 bits
– Triggering: Edge, Glitch, Runt, Setup/Hold, Timeout, Pattern, State, Sequence, Qualified
– Input Impedance: 50 Ohms
– Input Sensitivity Range: 1 mV/div to 10 V/div
– Timebase Range: 500 fs/div to 2000 s/div
– Connectivity: USB, LAN, GPIB, HDMI
– Waveform Update Rate: 1 Mwaveforms/s
– Math Functions: FFT, Add, Subtract, Multiply, Divide, Derivative, Integral, Square Root, etc.
– Advanced Analysis: Eye Diagram, Jitter, Histogram, Mask Testing, Serial Data Analysis
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 46.2 cm (W) x 21.8 cm (H) x 40.3 cm (D)
– Weight: 14.1 kg
