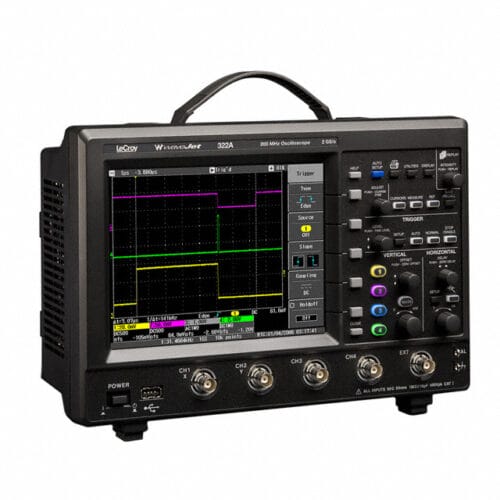

Teledyne Lecroy Wavejet 322A 200 Mhz, 1 Gs/S, 2 Ch, 500 Kpts/Ch With 7.5″ Color Display
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy Wavejet 322A is a powerful oscilloscope that offers a variety of features for professionals in the field. With a bandwidth of 200 MHz and a sampling rate of 1 Gs/S, it provides accurate and detailed measurements for analyzing waveforms. The oscilloscope comes equipped with two channels, allowing users to simultaneously observe and compare signals. Additionally, each channel has a memory depth of 500 Kpts, providing ample storage for capturing and analyzing waveforms. The 7.5-inch color display offers a clear and vibrant view of the waveforms, making it easy to interpret and analyze data. Whether in a laboratory or in the field, the Teledyne Lecroy Wavejet 322A is a reliable and efficient tool for any professional in need of precise waveform measurements.
Specifications
– Bandwidth: 200 MHz
– Sampling rate: 1 Gs/S
– Channels: 2
– Memory depth per channel: 500 Kpts
– Display: 7.5″ color display
– Vertical resolution: 8 bits
– Input impedance: 1 MΩ || 20 pF
– Vertical sensitivity: 2 mV/div – 10 V/div
– Horizontal time base range: 2 ns/div – 100 s/div
– Trigger types: Edge, pulse width, video, slope, pattern, runt, setup/hold, serial data, and more
– Connectivity options: USB, LAN, GPIB, and VGA
– Waveform math: Add, subtract, multiply, divide, FFT, and more
– Serial bus decoding: I2C, SPI, UART/RS-232, CAN, LIN, and more
– Dimensions: 11.8″ x 6.4″ x 5.4″
– Weight: 6.6 lbs
