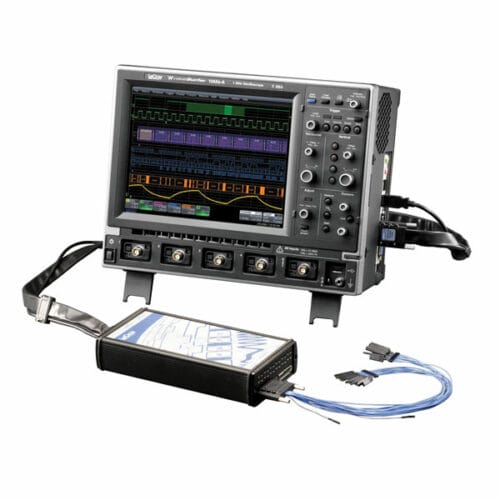

Teledyne Lecroy Ms-500 Mixed Signal Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne LeCroy MS-500 Mixed Signal Oscilloscope is a cutting-edge device that combines the functionality of a traditional oscilloscope with the ability to analyze both analog and digital signals simultaneously. With its high-resolution display and advanced triggering capabilities, the MS-500 is capable of capturing and displaying complex waveforms with unmatched precision. Its compact size and intuitive user interface make it ideal for use in a variety of applications, from electronics design and troubleshooting to manufacturing and field service. The MS-500 is equipped with a wide range of features, including multiple input channels, adjustable voltage ranges, and extensive triggering options, allowing users to accurately capture and analyze signals in real-time. Overall, the Teledyne LeCroy MS-500 Mixed Signal Oscilloscope is a reliable and versatile tool that offers unparalleled performance and functionality for professionals in the electronics industry.
Specifications
– Bandwidth: 500 MHz
– Sample Rate: 4 GS/s
– Analog Channels: 4
– Digital Channels: 16
– Maximum Input Voltage: ±20 V
– Input Impedance: 1 MΩ || 15 pF
– Vertical Resolution: 8 bits
– Time Base Range: 500 ps/div – 50 s/div
– Trigger Types: Edge, Pulse Width, Runt, Window, Timeout, Setup/Hold, Pattern, State, Delay, Serial
– Display: 10.4″ Color TFT LCD
– Connectivity: USB, LAN, GPIB (optional)
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 397 mm × 196 mm × 149 mm
– Weight: 4.5 kg
