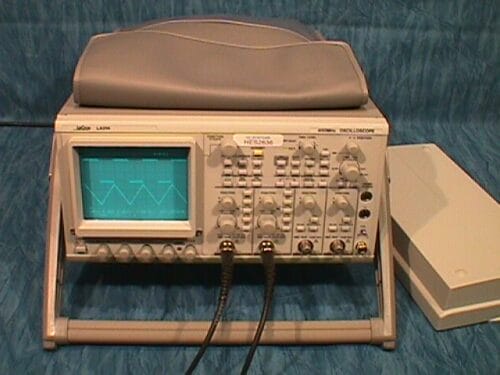

Teledyne Lecroy La314 400 Mhz 4 Ch Analog Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy La314 400 Mhz 4 Ch Analog Oscilloscope is a highly advanced and versatile piece of equipment. With its 400 MHz bandwidth and 4-channel capability, it offers precise and accurate measurements for a wide range of applications. The analog oscilloscope provides clear and detailed waveforms, allowing for easy analysis and troubleshooting of electronic circuits. The Teledyne Lecroy La314 is designed with user-friendly features, including a large display screen and intuitive controls, making it accessible for both experienced professionals and beginners. Its compact and durable design ensures long-lasting performance, making it an ideal choice for laboratories, educational institutions, and industrial settings. Overall, the Teledyne Lecroy La314 400 Mhz 4 Ch Analog Oscilloscope is a reliable and efficient tool that delivers exceptional performance in the field of electronic testing and measurement.
Specifications
– Bandwidth: 400 MHz
– Channels: 4
– Input impedance: 1 MΩ || 16 pF
– Maximum input voltage: 400 Vrms CAT I (derate at 20 dB/decade above 100 kHz)
– Vertical sensitivity: 2 mV/div to 10 V/div
– Vertical resolution: 8 bits
– Rise time: ≤ 0.9 ns
– Sample rate: 2 GS/s
– Record length: 10,000 points per channel
– Trigger types: Edge, Pulse Width, Runt, Window, Timeout, Pattern, State, Qualified
– Trigger modes: Auto, Normal, Single, Stop
– Timebase range: 2 ns/div to 1000 s/div
– Input coupling: AC, DC, GND
– Input voltage range: 2 mV to 100 V/div
– Input sensitivity: ≤ 2 mV/div
– Input impedance: 1 MΩ || 16 pF
– Maximum input voltage: 400 Vrms CAT I (derate at 20 dB/decade above 100 kHz)
– Horizontal scale accuracy: ± 100 ppm
– Vertical scale accuracy: ± 3%
– Display: 5.7-inch color TFT LCD
– Memory: 2 MB
– Interfaces: USB, LAN, GPIB (optional)
– Power supply: 100-240 VAC, 50/60 Hz, 50 VA
– Dimensions: 325 mm (W) x 163 mm (H) x 150 mm (D)
– Weight: 3.7 kg
