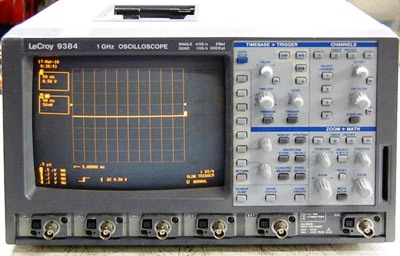

Teledyne Lecroy 9384Tm 1Ghz, 4Gs/S, 4 Ch Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy 9384Tm is a high-performance digital oscilloscope that offers advanced features and capabilities for accurate and detailed signal analysis. With a bandwidth of 1GHz and a sampling rate of 4Gs/s, it provides precise measurements and captures fast-changing signals with ease. The oscilloscope features 4 channels, allowing simultaneous monitoring and analysis of multiple signals. It offers a wide range of triggering options, including edge, pulse width, and video, ensuring flexible and reliable signal capture. The Teledyne Lecroy 9384Tm is equipped with a large and high-resolution display, providing a clear and detailed view of waveforms and measurements. Its intuitive user interface and comprehensive analysis tools make it suitable for a wide range of applications, from general electronics testing to more complex research and development tasks. Overall, the Teledyne Lecroy 9384Tm is a powerful and versatile digital oscilloscope that delivers accurate and reliable results for various signal analysis needs.
Specifications
– Model: Teledyne Lecroy 9384Tm
– Bandwidth: 1 GHz
– Sampling Rate: 4 GS/s
– Number of Channels: 4
– Vertical Resolution: 8 bits
– Memory Depth: Up to 12 Mpts
– Input Impedance: 1 MΩ // 15 pF
– Maximum Input Voltage: 400 V (DC + peak AC)
– Trigger Types: Edge, Glitch, Runt, Width, Timeout, Pattern, State, Setup/Hold, Window, Qualified, Dropout, Interval, Logic, Serial
– Trigger Modes: Auto, Normal, Single, Stop
– Display: 12.1 inch color TFT LCD touch screen
– Waveform Measurements: Amplitude, Frequency, Rise/Fall Time, Phase, Peak-to-Peak Value, RMS, etc.
– Acquisition Modes: Sample, Peak Detect, High Resolution, Average, Envelope, Segmented
– Connectivity: USB, LAN, VGA, GPIB (optional)
