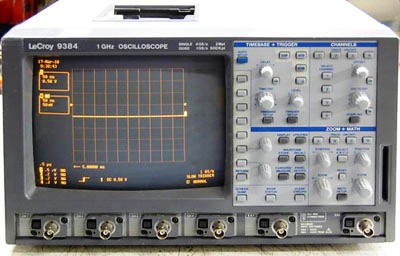

Teledyne Lecroy 9384 1Ghz,1Gs/S,4Ch, Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy 9384 is a highly versatile and efficient digital oscilloscope that offers advanced features for precise waveform analysis. With a bandwidth of 1GHz, it can accurately capture and display high-frequency signals with great clarity. The oscilloscope has a sampling rate of 1Gs/S, enabling it to capture fast-changing signals without missing any crucial details. Equipped with four channels, it allows for simultaneous measurement and analysis of multiple signals, making it ideal for complex circuit analysis and debugging. The Teledyne Lecroy 9384 is a reliable and powerful tool that offers engineers and technicians the ability to accurately measure, analyze, and troubleshoot various electronic systems.
Specifications
– Bandwidth: 1 GHz
– Sample rate: 1 GS/s
– Channels: 4
– Vertical resolution: 8 bits
– Memory depth: 10 Mpts/Ch
– Display: 10.4″ color TFT LCD
– Trigger types: Edge, Pulse width, Runt, Window, Timeout, Logic, I2C, SPI, UART, CAN, LIN, FlexRay
– Input impedance: 1 MΩ || 14 pF
– Maximum input voltage: 400 V CAT I, derate at 20 dB/decade above 100 kHz to 13 Vrms above 6 MHz
– Vertical sensitivity: 2 mV/div – 10 V/div
– Timebase range: 1 ns/div – 5 s/div
– Waveform update rate: 450,000 wfm/s
– Connectivity: USB, Ethernet, GPIB (optional)
– Dimensions: 380 mm x 190 mm x 150 mm
– Weight: 4.2 kg
