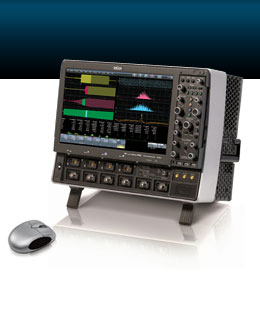

Teledyne Lecroy 715Zi-A 1.5 Ghz, 10 Gs/S, 4Ch, 20 Mpts/Ch Dso With 15.4″ Wxga Color
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne LeCroy 715Zi-A is a highly advanced digital storage oscilloscope (DSO) with impressive specifications. With a bandwidth of 1.5 GHz and a sampling rate of 10 Gs/S, this device offers exceptional performance for capturing and analyzing high-speed signals. It features four channels, allowing for simultaneous measurements on multiple input signals. Additionally, each channel has a generous memory depth of 20 Mpts, enabling the capture of long-duration waveforms with high resolution. The 715Zi-A also boasts a large 15.4″ WXGA color display, providing a clear and detailed visualization of waveforms and measurements. Overall, this oscilloscope is a powerful tool for engineers and researchers working with complex electronic systems.
Specifications
– Model: Teledyne Lecroy 715Zi-A
– Bandwidth: 1.5 GHz
– Sample Rate: 10 GS/s
– Channels: 4
– Memory Depth: 20 Mpts per channel
– Display: 15.4″ WXGA color screen
– Resolution: 1280 x 800 pixels
– Input Impedance: 1 MΩ || 14 pF
– Vertical Sensitivity: 1 mV/div – 10 V/div
– Timebase Range: 100 ps/div – 2000 s/div
– Trigger Types: Edge, Pulse Width, Runt, Video, Pattern, State, Delay, Setup/Hold, Serial Data, I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, and more
– Connectivity: USB 3.0, Ethernet, GPIB (optional)
– Dimensions: 17.75″ x 11″ x 6.5″ (W x H x D)
– Weight: 18.5 lbs (8.4 kg)
– Power Requirements: 100-240 VAC, 50/60 Hz
