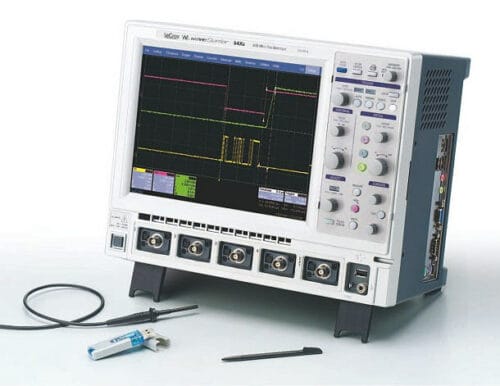

Teledyne Lecroy 24Xs-A Wavesurfer 200 Mhz, 2.5 Gs/S, 4 Ch, 2.5 Mpts/Ch Memory, 10.4
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Teledyne Lecroy 24Xs-A Wavesurfer is a highly advanced and powerful oscilloscope that offers exceptional performance and functionality. With a bandwidth of 200 MHz and a sampling rate of 2.5 Gs/s, this oscilloscope is capable of capturing and analyzing high-frequency signals with utmost accuracy and precision. Equipped with four channels, it allows simultaneous measurement of multiple signals, making it ideal for complex electronic designs and troubleshooting. The generous 2.5 Mpts/Ch memory enables the storage and analysis of large amounts of waveform data, ensuring that no crucial information is missed. Additionally, the 10.4-inch display provides a clear and detailed visualization of the waveforms, allowing engineers and technicians to easily interpret and analyze the measured signals. Overall, the Teledyne Lecroy 24Xs-A Wavesurfer is a top-notch oscilloscope that offers advanced features and excellent performance for a wide range of electronic applications.
Specifications
– Brand: Teledyne Lecroy
– Model: 24Xs-A Wavesurfer
– Bandwidth: 200 MHz
– Sampling Rate: 2.5 Gs/S
– Channels: 4
– Memory Depth: 2.5 Mpts/Ch
– Display: 10.4 inches
– Vertical Resolution: 8 bits
– Input Impedance: 1 MΩ || 13 pF
– Timebase Range: 1 ns/div to 100s/div
– Trigger Types: Edge, Glitch, Runt, Width, Timeout, Transition, Pattern, State, Qualified, Delay
– Connectivity: USB, LAN, GPIB, VGA
– Power Supply: 90-264 VAC, 47-63 Hz
– Dimensions: 355 mm x 189 mm x 127 mm
– Weight: 2.8 kg
