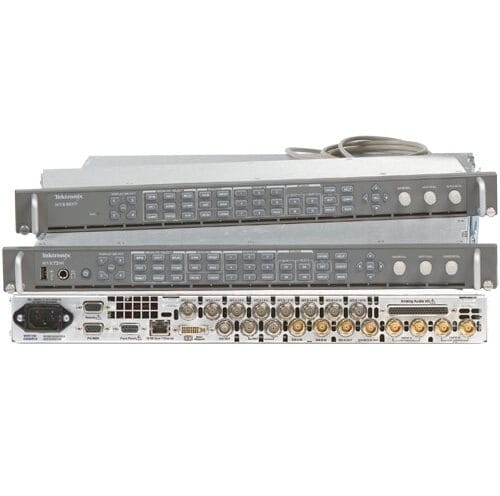

Tektronix WVR7200 Video & Broadcast Test Equipment
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix WVR7200 Video & Broadcast Test Equipment is a highly advanced and reliable solution for video and broadcast professionals. With its comprehensive range of features and capabilities, it offers precise and accurate measurement and analysis of video and audio signals. The WVR7200 is equipped with a high-quality display that allows for easy viewing of waveforms, vectors, and pictures, providing users with a clear and detailed representation of their content. It also offers a user-friendly interface, making it simple to navigate and operate, even for those who are new to video testing. Whether it’s monitoring signal quality, checking color accuracy, or analyzing audio levels, the Tektronix WVR7200 is a top-of-the-line tool that delivers exceptional performance and efficiency in the world of video and broadcast testing.
Specifications
– Input Formats: 3G-SDI, HD-SDI, SD-SDI, Composite
– Video Inputs: 2
– Video Output: 1
– Audio Inputs: 8 channels
– Audio Outputs: 8 channels
– Video Bit Depth: 10-bit
– Video Sampling: 4:2:2
– Video Measurement Capabilities: Picture, Waveform, Vector, Gamut, Timing, Audio Level, Audio Loudness, Audio Phase, Audio Dolby E
– Video Measurement Accuracy: ±0.5% of full scale
– Audio Measurement Capabilities: Level, Loudness, Phase, Dolby E
– Audio Measurement Accuracy: ±0.5 dB
– Video Display: 7-inch touchscreen LCD
– Video Interfaces: HDMI, VGA
– Audio Interfaces: AES/EBU, Analog, Embedded
– Video Recording: Internal storage, USB storage
– Audio Recording: Internal storage, USB storage
– Video Monitoring: SDI, HDMI, VGA
– Audio Monitoring: AES/EBU, Analog, Embedded
– Video Test Patterns: Color bars, Pathological patterns
– Audio Test Signals: Tone, Noise, Silence
– Video Timecode: SMPTE 12M, SMPTE 12M-2, VITC, LTC
– Audio Timecode: SMPTE 12M, SMPTE 12M-2, VITC, LTC
– Network Connectivity: Ethernet, USB, RS-232
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 3.5 x 16.1 x 9.8 inches
– Weight: 10.8
TEKTRONIX WVR7200 is also available with the following specs and model:
- Waveform Rasterizer Multi-format multi-standard SD HD Dual Link
