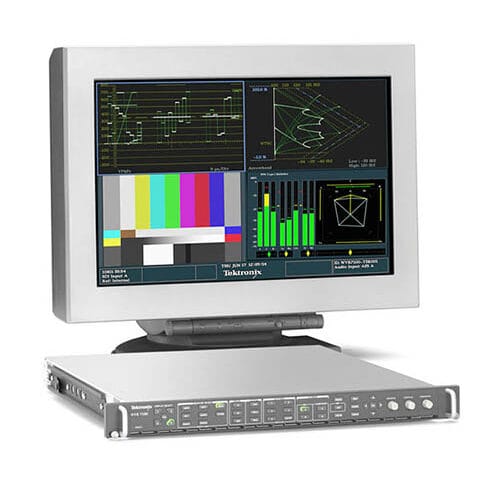

Tektronix WVR7100 Video Products
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix WVR7100 Video Products are state-of-the-art video waveform rasterizers that provide unparalleled accuracy and flexibility in video analysis and monitoring. These products are designed to cater to the needs of professionals in various industries, including broadcasting, post-production, and content creation. With advanced features like comprehensive video and audio measurements, customizable displays, and support for a wide range of video formats, the WVR7100 series allows users to ensure the quality and integrity of their video content. Whether it’s detecting signal anomalies, troubleshooting issues, or conducting in-depth analysis, Tektronix WVR7100 Video Products offer the tools and capabilities to deliver exceptional results and maintain the highest standards in video production.
Specifications
– Video formats: SD-SDI, HD-SDI, 3G-SDI
– Video inputs: 2x SDI, 1x HDMI
– Video outputs: 1x SDI, 1x HDMI
– Video resolution: Up to 1080p
– Video standards: SMPTE 259M, SMPTE 292M, SMPTE 424M
– Audio formats: Embedded audio in SDI signals
– Audio inputs: 16 channels embedded in SDI, 2 channels embedded in HDMI
– Audio outputs: 16 channels embedded in SDI, 2 channels embedded in HDMI
– Audio level measurement: Peak, loudness, true-peak, loudness range
– Audio monitoring: Headphone output, built-in speakers, audio bars on screen
– Video measurement: Waveform display, vectorscope display, picture display
– Video analysis: Eye pattern display, jitter measurement, cable length measurement
– Video monitoring: Picture display with zoom and pan, video freeze
– Video signal analysis: Gamut display, gamut violation detection
– Video signal generation: Test patterns, color bars, audio tones
– Connectivity: Ethernet, USB, GPI, RS-232
– Control: Web-based user interface, remote control software
– Power: AC power supply, optional DC power supply
– Dimensions: 1U rack-mountable form factor
