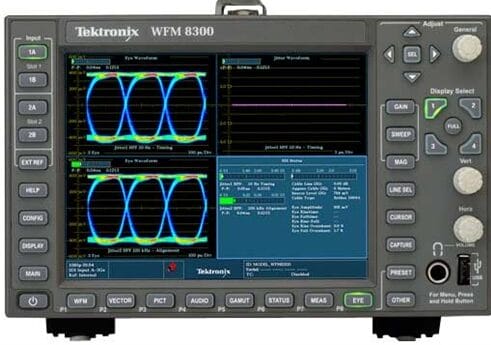

Tektronix WFM8300 Waveform Monitor
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix WFM8300 Waveform Monitor is a highly advanced and versatile tool used in the broadcast and media industry. It offers comprehensive and accurate measurements of video and audio signals, allowing broadcasters to ensure the quality and integrity of their content. With its high-resolution display, it allows for detailed analysis of waveforms, vectors, and audio levels. The WFM8300 also features advanced video monitoring capabilities, such as eye pattern display and jitter analysis, which help in detecting and troubleshooting signal issues. Its user-friendly interface and customizable display options make it easy to use and adapt to specific monitoring needs. Overall, the Tektronix WFM8300 Waveform Monitor is an indispensable tool for broadcast professionals seeking precise monitoring and analysis of video and audio signals.
Specifications
– Display: 9-inch color LCD display
– Resolution: 800 x 480 pixels
– Aspect Ratio: 16:9
– Video Inputs: SD/HD/3G-SDI, Composite, Component, HDMI
– Audio Inputs: Embedded SDI, AES/EBU, Analog
– Video Formats: NTSC, PAL, 1080i, 1080p, 720p, 480i, 576i
– Audio Formats: PCM, Dolby Digital, Dolby E, Dolby Digital Plus
– Waveform Display: YCbCr, RGB, Composite, Component, Luma, Chroma
– Vector Display: Composite, Component
– Gamut Display: Composite, Component
– Picture Display: Full screen, Split screen
– ANC Data Display: VANC, HANC, WSS, AFD, SCTE 104, SCTE 35
– Audio Loudness Measurement: ITU-R BS.1770-3, ITU-R BS.1771, EBU R-128, ATSC A/85
– Video Gamut Measurement: ITU-R BT.601, ITU-R BT.709, SMPTE RP 219
– Video Timing Measurement: NTSC, PAL, 1080i, 1080p, 720p, 480i, 576i
– Video Quality Measurement: Blockiness, Mosquito noise, Blurring, Freezing, Black frame detection
– Physical Dimensions (HxWxD): 9.2 x 20.4 x 14.2 inches
– Weight: 16.5 lbs
– Power Supply: 100-240 VAC, 50/60 Hz
– Power Consumption: 60 W
