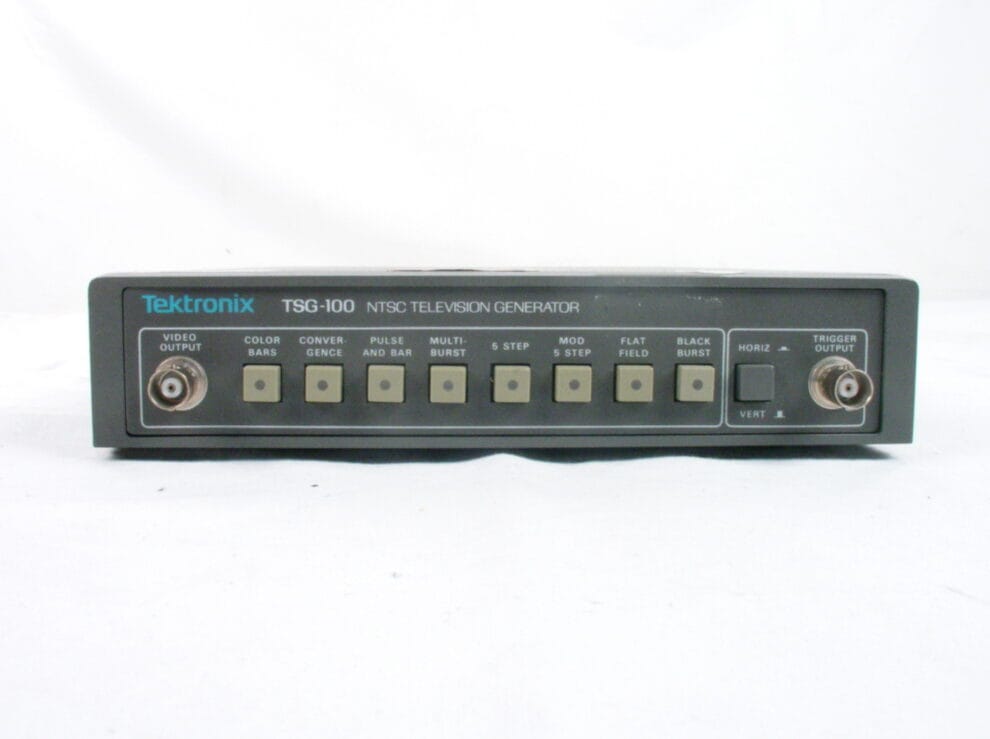

Tektronix TSG100 Video Products
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix TSG100 Video Products are highly advanced and innovative tools that revolutionize the video testing and analysis industry. These products are designed to provide accurate and reliable results, ensuring optimal video performance in various applications. With their advanced features and functionalities, Tektronix TSG100 Video Products offer comprehensive video signal generation, analysis, and monitoring capabilities. They are equipped with high-quality video test patterns, audio signals, and timecode generators, allowing users to calibrate and troubleshoot video systems with ease. Additionally, Tektronix TSG100 Video Products offer user-friendly interfaces, intuitive controls, and extensive connectivity options, making them suitable for professionals in broadcasting, production, post-production, and other video-related industries. Overall, Tektronix TSG100 Video Products are trusted and preferred by industry experts for their exceptional performance, accuracy, and versatility in video testing and analysis.
Specifications
– Video formats: NTSC, PAL, SECAM
– Output connectors: Composite Video (BNC), S-Video (4-pin mini DIN), Component Video (3 BNC)
– Video levels: 1Vp-p for Composite and S-Video, 1Vp-p for Y signal in Component Video, 0.7Vp-p for PB and PR signals in Component Video
– Video impedance: 75 ohms
– Video bandwidth: 5 MHz
– Video signal-to-noise ratio: >60 dB
– Video test patterns: Color bars, Crosshatch, Multiburst, Pluge, Luma Zone Plate, Chroma Zone Plate
– Audio formats: Stereo, mono, SAP (Second Audio Program)
– Audio connectors: RCA (left and right channels), XLR (balanced audio)
– Audio levels: -10dBV (RCA), +4dBu (XLR)
– Audio signal-to-noise ratio: >80 dB
– Audio test tones: 1 kHz, 400 Hz, 100 Hz, 40 Hz
– Power supply: 100-240V AC, 50/60 Hz
– Dimensions: 19″ (W) x 1.75″ (H) x 10.5″ (D)
– Weight: 6.5 lbs
Tektronix TSG100 is also available with the following specs and model:
- Test Signal Generator – NTSC
