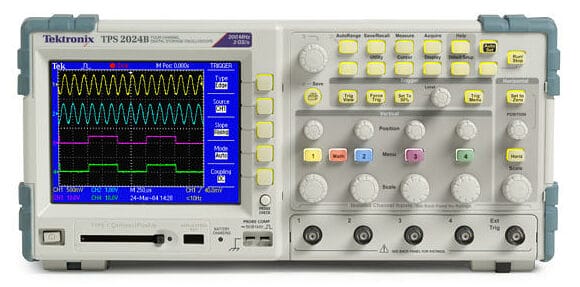

Tektronix Tps2024B Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TPS2024B Oscilloscope is a powerful and versatile tool used for electronic measurements and analysis. With its 200 MHz bandwidth and four channels, it allows for accurate and detailed waveform analysis. The TPS2024B features a large color display that provides clear and easy-to-read waveforms, making it convenient for both novice and experienced users. Its advanced triggering capabilities enable precise capture of complex signals, while its automated measurement features simplify analysis tasks. Additionally, the oscilloscope offers a variety of connectivity options, including USB, LAN, and GPIB, allowing for seamless integration into any testing environment. Overall, the Tektronix TPS2024B Oscilloscope is a reliable and efficient instrument that meets the needs of professionals working in fields such as research and development, education, and manufacturing.
Specifications
– Bandwidth: 200 MHz
– Channels: 4
– Sample Rate: 2 GS/s
– Display: 7-inch color TFT LCD
– Vertical Resolution: 8 bits
– Input Voltage Range: 1 mV/div to 10 V/div
– Input Impedance: 1 MΩ || 13 pF
– Maximum Input Voltage: 300 Vrms CAT II
– Triggering: Edge, Pulse Width, Video, Slope, Runt, Windows, Timeout, Logic, Pattern, and Serial
– Waveform Capture Rate: 5,000 waveforms per second
– Storage: 2.5 million points per channel
– Connectivity: USB 2.0 host and device ports, LAN (Ethernet) port, GPIB (optional)
– Power Supply: 100-240 V AC, 45-440 Hz, 50 VA max
– Dimensions: 356 mm x 177 mm x 134 mm
– Weight: 2.9 kg
TEKTRONIX TPS2024B is also available with the following specs and model:
- Oscilloscope Digital Storage 200 MHz 2 GS/s Analog Chs 4
