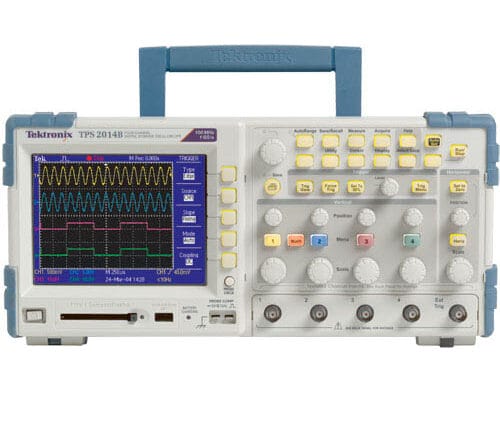

Tektronix Tps2014B Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Tps2014B Oscilloscope is a highly advanced and efficient instrument used for measuring and analyzing electrical signals. With its 100 MHz bandwidth and 1 GS/s sampling rate, it offers precise and accurate measurements, making it suitable for a wide range of applications. The oscilloscope features a large 7-inch color display that provides a clear and detailed view of waveforms. It also includes advanced triggering capabilities, such as edge, pulse width, and video triggers, allowing users to capture and analyze complex signals with ease. The Tps2014B is equipped with a USB port for convenient data transfer and storage, as well as a built-in help menu that provides assistance to users when needed. Overall, the Tektronix Tps2014B Oscilloscope is a reliable and versatile tool that is widely used by professionals in various fields, including electronics, telecommunications, and research and development.
Specifications
– Bandwidth: 100 MHz
– Channels: 4
– Sample Rate: 1 GS/s
– Memory Depth: 2.5K points per channel
– Display: 7″ TFT color display
– Vertical Sensitivity: 2 mV – 5 V/div
– Horizontal Timebase Range: 5 ns – 50 s/div
– Trigger Types: Edge, Pulse Width, Runt, Video, Timeout, Pattern, State, and Setup/Hold
– Input Impedance: 1 MΩ ± 2% || 13 pF ± 3 pF
– Max Input Voltage: 300 Vrms CAT II
– Connectivity: USB host and device ports, LAN, GPIB, and VGA output
– Power Supply: 100-120 VAC, 50/60 Hz or 200-240 VAC, 50/60 Hz
– Dimensions: 325 mm x 167 mm x 124 mm
– Weight: 2.9 kg
TEKTRONIX TPS2014B is also available with the following specs and model:
- Oscilloscope Digital Storage 100 MHz 1 GS/s Analog Chs 4
