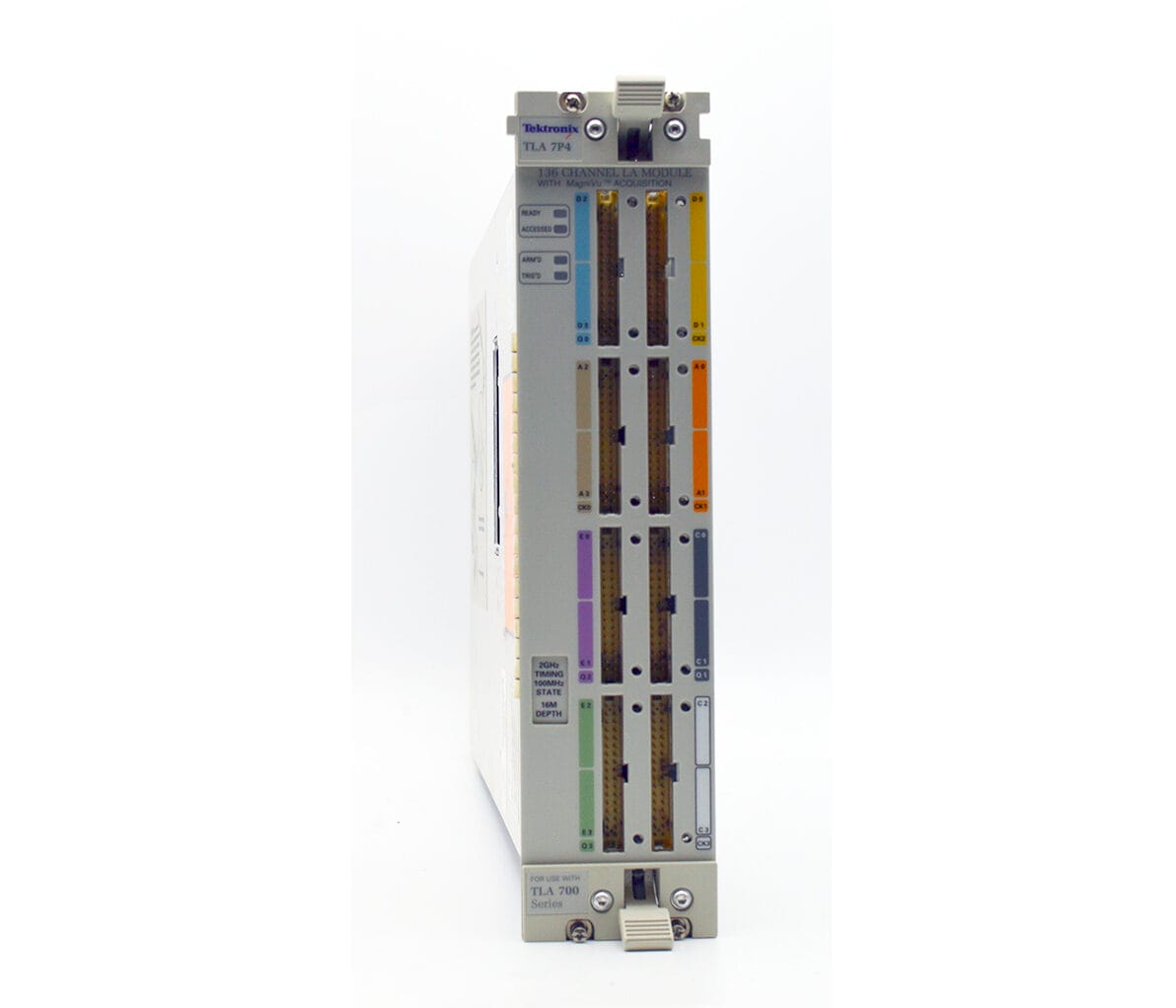

Tektronix TLA7P4 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix TLA7P4 Logic Analyzers are advanced tools used for analyzing and troubleshooting digital systems. These logic analyzers offer powerful features and capabilities to help engineers and technicians efficiently debug complex logic designs. With a high-speed acquisition rate and deep memory depth, they can capture and analyze large amounts of digital data with precision and accuracy. The TLA7P4 logic analyzers also provide a flexible and intuitive user interface, allowing users to easily navigate through captured waveforms and perform complex analysis tasks. Additionally, these analyzers offer a wide range of probing options and support for various protocols, enabling engineers to debug and validate their designs with ease. Overall, the Tektronix TLA7P4 Logic Analyzers are reliable and efficient tools that play a crucial role in the development and testing of digital systems.
Specifications
– 136 channels
– Maximum timing speed of 4 GHz
– Memory depth options ranging from 64M to 1G
– Real-time hardware triggering and analysis
– High-speed serial analysis for protocols such as PCIe, USB, SATA, and Ethernet
– Integrated protocol viewer for easy analysis and debugging
– Advanced measurement and analysis capabilities for complex designs
– Flexible triggering options including pattern, state, and edge triggering
– Large display and intuitive user interface for easy navigation and analysis
– Support for various input modules and probes for versatile testing options
TEKTRONIX TLA7P4 is also available with the following specs and model:
- Logic Analyzer Module Chs 136 2 GHz timing 100 MHz state 16 M depth
