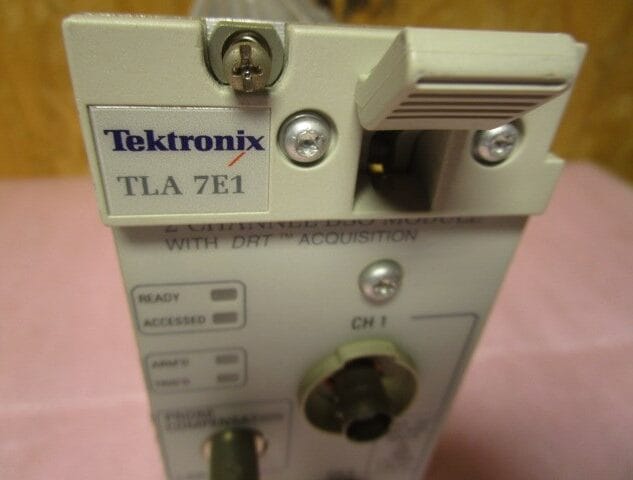

Tektronix TLA7E1 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TLA7E1 Logic Analyzer is a powerful tool designed for engineers and technicians working with digital systems. With its high-performance capabilities, it offers extensive analysis and debugging capabilities for complex logic systems. The TLA7E1 features a large display and an intuitive user interface, making it easy to navigate and analyze data. It supports a wide range of protocols, including DDR, PCIe, USB, and Ethernet, ensuring compatibility with various digital systems. The Logic Analyzer’s advanced triggering and protocol decoding capabilities enable users to easily identify and resolve complex system issues. Overall, the Tektronix TLA7E1 Logic Analyzer is a reliable and efficient solution for analyzing and troubleshooting digital systems.
Specifications
– 68-channel logic analyzer
– 2 GHz timing analysis
– 125 ps timing resolution
– 340 MHz state analysis
– 64 Mb depth per channel
– Up to 450 MHz transitional timing analysis
– 10.4″ color touch screen display
– USB 2.0 and LAN connectivity
– Support for industry-standard protocols such as I2C, SPI, UART, CAN, and more
– Advanced triggering and filtering capabilities
– Integrated waveform generation
– Multiple acquisition modes for flexible data capture
– Comprehensive software for data analysis and debugging
TEKTRONIX TLA7E1 is also available with the following specs and model:
- DSO Module DC – 1GHz
