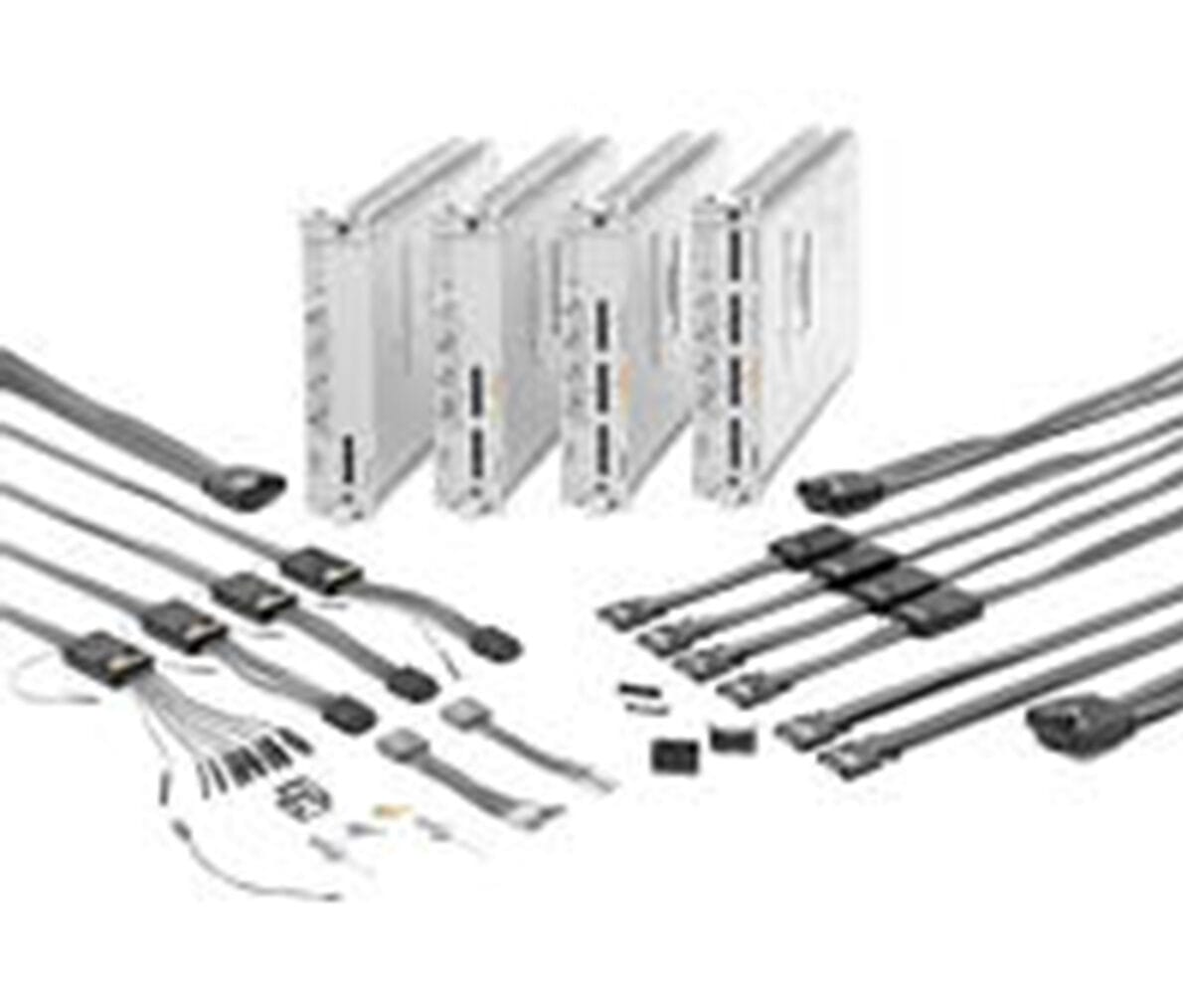

Tektronix TLA7AB2 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TLA7AB2 Logic Analyzers are highly advanced and versatile tools designed to provide accurate and precise analysis of digital signals. These logic analyzers are equipped with a wide range of features and capabilities, making them suitable for various applications, including embedded systems development, digital design, and troubleshooting. With high-speed state and timing analysis, these analyzers offer deep memory depth and a large number of input channels, allowing users to capture and analyze complex digital signals with ease. Additionally, the TLA7AB2 Logic Analyzers come with an intuitive user interface and powerful software that enables efficient data analysis and visualization. Overall, Tektronix TLA7AB2 Logic Analyzers are trusted tools in the electronics industry, offering reliable and comprehensive solutions for digital signal analysis.
Specifications
– 136 channels, expandable up to 2040 channels with additional modules
– Maximum data rate of 2.5 Gbps
– Memory depth up to 64 Mbits per channel
– State clock speeds up to 450 MHz
– Trigger sequencing and complex pattern triggering capabilities
– Protocol analysis support for various standards including I2C, SPI, UART, CAN, USB, Ethernet, and more
– Advanced waveform search and navigation features
– High-resolution touch-screen display for intuitive operation
– Multiple connectivity options including USB, LAN, and GPIB
– Compatibility with popular software packages for data analysis and debugging
– Comprehensive documentation and customer support from Tektronix
TEKTRONIX TLA7AB2 is also available with the following specs and model:
- Logic Analyzer – Module – 68ch – 8GHz timing 120MHz state 64Mb depth
