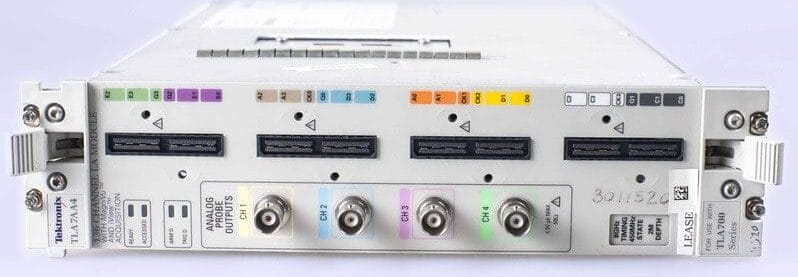

Tektronix TLA7AA4 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TLA7AA4 Logic Analyzer is a powerful and versatile tool designed for engineers and technicians working on digital systems. With 136 channels and a maximum data rate of 4 Gb/s, it offers high-speed and accurate signal analysis. The TLA7AA4 provides deep memory depth, allowing users to capture and analyze long and complex waveforms. It also features advanced triggering capabilities, enabling precise event detection and triggering on specific data patterns. The intuitive user interface and flexible software options make it easy to navigate and customize the analysis process. Overall, the Tektronix TLA7AA4 Logic Analyzer is a reliable and efficient tool for troubleshooting, debugging, and verifying designs in various digital applications.
Specifications
– Model: Tektronix TLA7AA4
– Type: Logic Analyzer
– Number of Channels: 136
– Maximum Input Rate: 4 GHz
– Maximum Timing Rate: 50 GHz
– Maximum State Rate: 1.25 GHz
– Memory Depth: Up to 64 M samples per channel
– Trigger Types: Edge, Pattern, Glitch, Setup/Hold, State, Parallel, Serial, Sequence
– Trigger Sequencer: Yes
– Input Voltage Range: -6 V to +6 V
– Input Impedance: 100 kΩ || 3 pF
– Interface: USB 3.0, Ethernet
– Dimensions: 43.2 cm x 32.3 cm x 15.2 cm
– Weight: 8.6 kg (19 lbs)
– Power Supply: 100-240 V AC, 50/60 Hz
– Operating Temperature: 0°C to 50°C
TEKTRONIX TLA7AA4 is also available with the following specs and model:
- Logic Analyzer module Chs 136 8 GHz timing 120 MHz state 128 Kb depth
