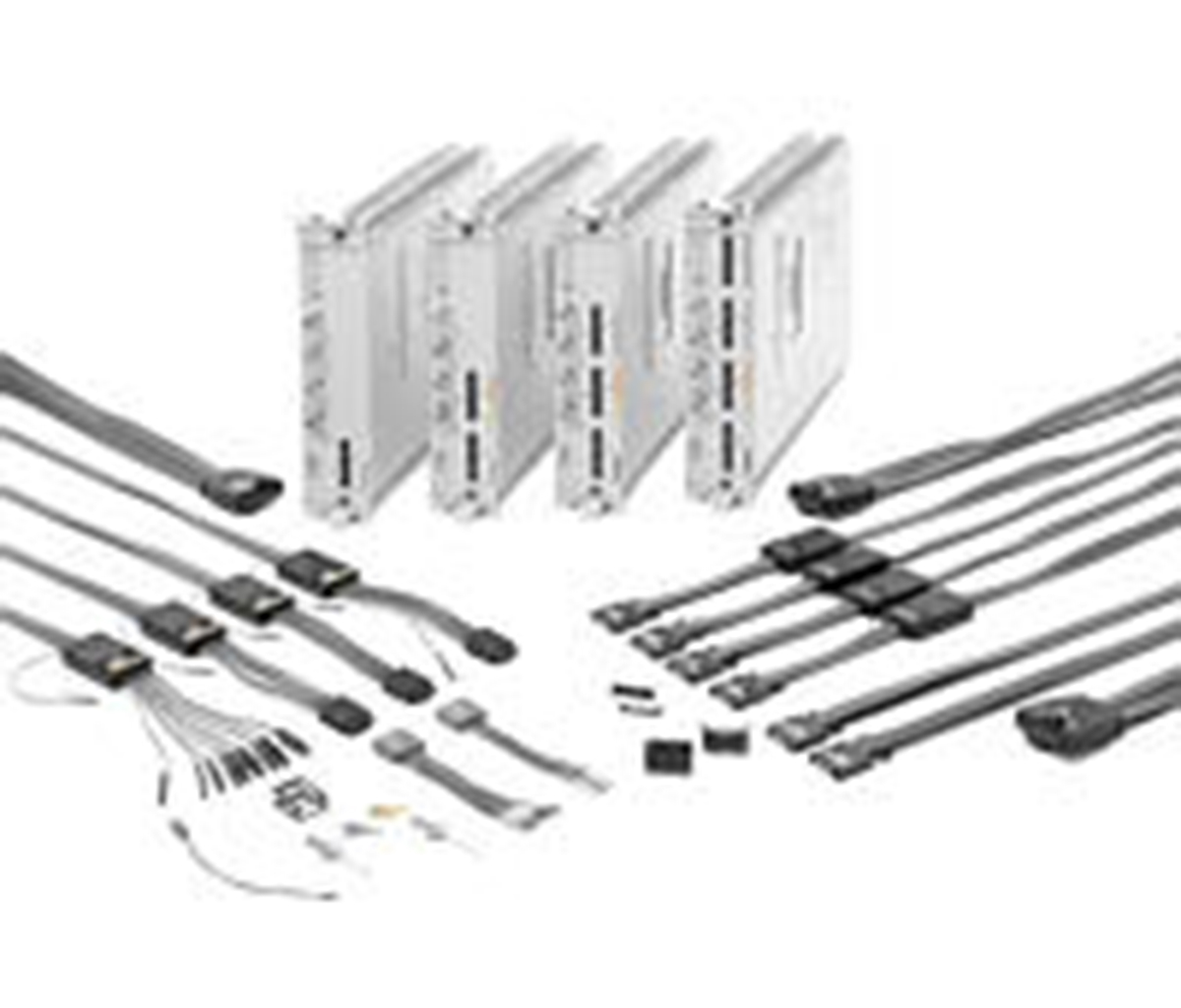

Tektronix TLA7AA3 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix TLA7AA3 Logic Analyzers are highly advanced and reliable tools designed for precise and efficient digital logic analysis. These logic analyzers offer a wide range of features and capabilities that make them an essential asset for engineers and technicians working on complex digital systems. With a maximum state speed of 450 MHz and a large memory depth of up to 64 Mb, these analyzers provide unparalleled performance and accuracy in capturing and analyzing digital signals. The TLA7AA3 Logic Analyzers also come equipped with a user-friendly interface and powerful software that allows for seamless data analysis and debugging. With its impressive capabilities and ease of use, the Tektronix TLA7AA3 Logic Analyzers are an indispensable tool for anyone involved in digital system design and verification.
Specifications
– Model: TLA7AA3
– Manufacturer: Tektronix
– Type: Logic Analyzer
– Number of Channels: 136
– Maximum Input Rate: 4 GHz
– Maximum State Speed: 2.5 GHz
– Memory Depth: Up to 16 GB
– Triggering: Pattern, Glitch, State, Sequence, and more
– Protocol Support: I2C, SPI, UART, USB, Ethernet, CAN, LIN, and more
– Display: 15-inch color touchscreen
– Connectivity: USB, Ethernet, GPIB
– Software: Tektronix OpenChoice
– Compatibility: Windows, macOS, Linux
– Dimensions: 17.1 x 17.5 x 8.5 inches
– Weight: 27.5 lbs
TEKTRONIX TLA7AA3 is also available with the following specs and model:
- Logic Analyzer – Module – 102ch – 8GHz timing 120MHz state 128Kb depth
