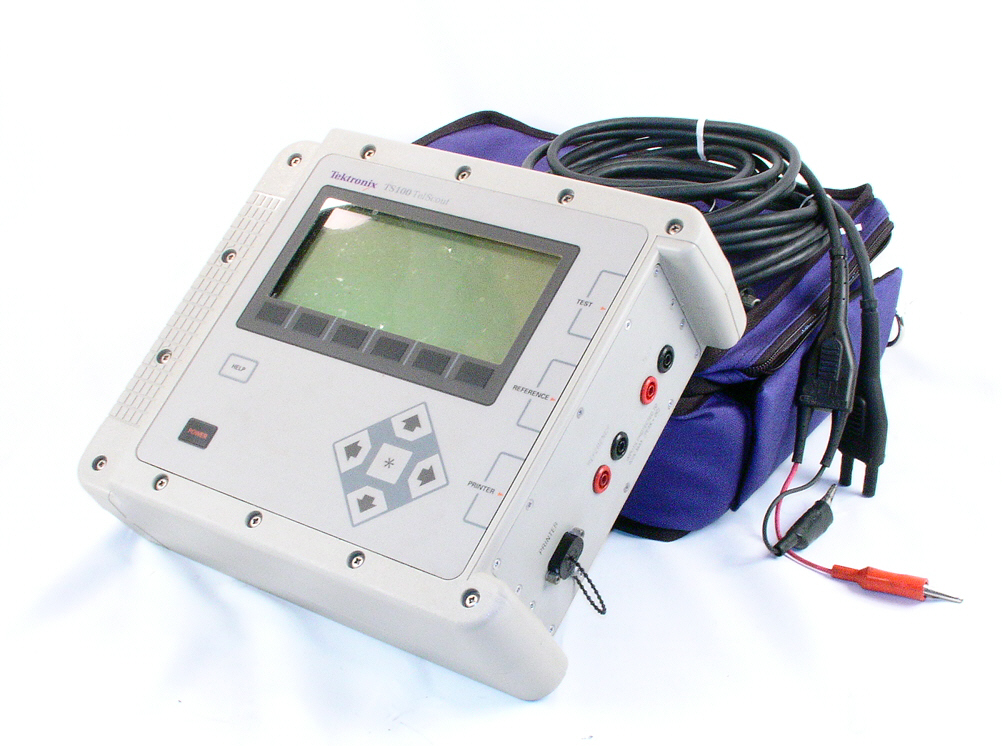

Tektronix Tektronix TS100 Cable Test – Metallic
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TS100 Cable Test – Metallic is a highly advanced and efficient testing tool designed to accurately measure and analyze the performance of metallic cables. With its innovative technology, this device ensures precise and reliable test results, allowing users to quickly identify and troubleshoot cable faults. It offers a wide range of testing capabilities, including impedance measurement, attenuation measurement, and capacitance measurement. Additionally, the TS100 provides a user-friendly interface, making it easy for technicians to navigate through various test functions and interpret test data. Whether it is for telecommunications, aerospace, or industrial applications, the Tektronix TS100 Cable Test – Metallic is an essential tool for maintaining and optimizing cable performance.
Specifications
– Brand: Tektronix
– Model: TS100
– Cable Test Type: Metallic
– Testing Method: Conductivity through metallic cables
– Cable Types: Coaxial cables, twisted pair cables, shielded cables
– Cable Length Range: Up to 5000 feet (1524 meters)
– Test Frequency Range: 500 Hz to 1 MHz
– Resistance Measurement Range: 0.01 Ω to 100 Ω
– Accuracy: ±1% of reading ±0.01 Ω
– Test Modes: Single-ended, dual-ended, and common mode
– Display: LCD display with backlit
– Connectors: BNC connectors for coaxial cables, RJ45 connectors for twisted pair cables
– Power Source: Rechargeable battery or AC power adapter
– Battery Life: Up to 8 hours of continuous use
– Weight: Approximately 1.5 lbs (0.68 kg)
– Dimensions: 8.5 in x 4.3 in x 2.3 in (21.6 cm x 10.9 cm x 5.8 cm)
