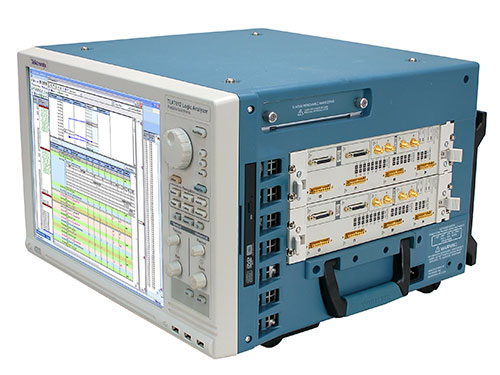

Tektronix Tektronix TLA7106 Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TLA7106 Analyzer is an incredibly powerful and versatile instrument designed to meet the needs of today’s complex digital systems. With its advanced features and capabilities, it allows engineers and technicians to thoroughly analyze and debug digital signals with ease. The TLA7106 offers a high sample rate and deep memory, enabling the capture and analysis of long data records. Its intuitive user interface and flexible triggering options make it easy to navigate and quickly identify and isolate issues. Additionally, the TLA7106 supports a wide range of digital protocols, including high-speed serial standards, making it suitable for a variety of applications such as telecommunications, automotive, and aerospace. Overall, the Tektronix TLA7106 Analyzer is a reliable and efficient tool that empowers users to effectively troubleshoot and optimize digital systems.
Specifications
– Manufacturer: Tektronix
– Model: TLA7106
– Type: Logic Analyzer
– Number of Channels: 136
– Maximum Input Frequency: 2.5 GHz
– Memory Depth: Up to 64 Mbits
– Sample Rate: Up to 4 GHz
– Triggering Options: Edge, Pulse Width, Pattern, State, Glitch, Setup and Hold, Sequence, Serial
– Input Voltage Range: -10 V to +10 V
– Input Impedance: 100 Ohms
– Display: 8.4-inch color LCD
– Interface: USB, Ethernet, GPIB
– Operating Temperature: 0°C to 40°C
– Dimensions: 44.7 cm x 43.2 cm x 17.8 cm
– Weight: 10.6 kg
