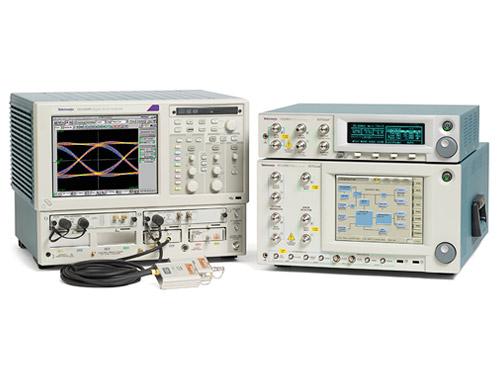

Tektronix Tektronix BSA12500ISI BERT/Jitter Test
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix BSA12500ISI BERT/Jitter Test is a highly advanced and reliable testing instrument designed by Tektronix. It is specifically developed for testing and analyzing the performance of high-speed serial data communication systems. With its comprehensive capabilities, the BSA12500ISI enables engineers and technicians to accurately measure and analyze bit error rates (BER) and jitter on various interfaces, such as PCIe, USB, Ethernet, and more. This test equipment ensures that the data transmission is error-free and meets industry standards, providing valuable insights into system performance and identifying any potential issues or anomalies. The Tektronix BSA12500ISI BERT/Jitter Test is a trusted tool for engineers working in research and development, manufacturing, and compliance testing, enabling them to ensure the reliability and quality of their high-speed serial data communication systems.
Specifications
– Manufacturer: Tektronix
– Model: BSA12500ISI
– Test type: BERT/Jitter
– Test specifications:
– Bit Error Rate Testing (BERT): The BSA12500ISI can perform BERT testing to measure the error rate of digital signals. It can generate and analyze various patterns to evaluate the quality of the signal transmission.
– Jitter Testing: The BSA12500ISI can analyze the amount of jitter present in a signal. It can measure jitter in both the time and frequency domains, providing detailed information about the signal’s stability.
– Supported data rates: The BSA12500ISI supports a wide range of data rates, including but not limited to 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps, 25 Gbps, and 40 Gbps.
– Input/output interfaces: The BSA12500ISI offers various input/output interfaces, such as electrical, optical, and differential, to accommodate different types of signals and connections.
– Error analysis: The BSA12500ISI provides comprehensive error analysis capabilities, allowing users to identify and diagnose different types of errors, such as bit errors, frame errors, and burst errors.
– Compliance testing: The BSA12500ISI is capable of performing compliance testing according to industry standards, such as Ethernet, Fibre Channel, and PCI Express, ensuring that the tested signals meet the required specifications.
– Advanced features: The BSA12500ISI may offer additional advanced features, including clock recovery, equalization, and eye diagram analysis, to further analyze and enhance the quality of the tested signals.
