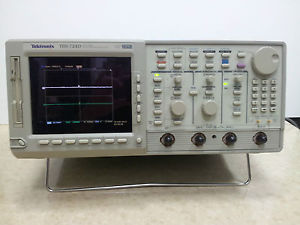

Tektronix Tds724D 500Mhz, 2+2 Ch, 2Gs/S, Digital Oscilliscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Tds724D 500Mhz, 2+2 Ch, 2Gs/S, Digital Oscilloscope is a highly advanced and versatile instrument used for measuring and analyzing electrical signals. With a bandwidth of 500Mhz, it is capable of accurately capturing and displaying signals with frequencies up to 500 million cycles per second. The oscilloscope features 2+2 channels, allowing for simultaneous measurement of up to four different signals. With a maximum sample rate of 2Gs/S, it can capture fast-changing waveforms with great precision. The digital nature of this oscilloscope provides enhanced functionality, including advanced triggering and analysis tools, making it an invaluable tool for engineers, technicians, and researchers working in various fields such as electronics, telecommunications, and automotive.
Specifications
– Model: Tektronix Tds724D
– Bandwidth: 500 MHz
– Channels: 2+2 (2 analog, 2 digital)
– Sampling Rate: 2 Gs/S (Giga-samples per second)
– Vertical Resolution: 8 bits
– Display: 6.3-inch color TFT LCD
– Memory Depth: 2.5 Megapoints per channel
– Record Length: Up to 50,000 points per channel
– Timebase Range: 500 ps/div to 10 s/div
– Input Impedance: 1 MΩ || 11 pF
– Maximum Input Voltage: 300 Vrms CAT II
– Trigger Modes: Auto, Normal, Single Sequence, and External
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Pattern, and Video
– Input Coupling: AC, DC, GND
– Probes: 2 TPP0250 passive voltage probes included
– Communication Interfaces: USB, GPIB, RS-232
– Dimensions: 340 mm x 177 mm x 134 mm (W x H x D)
– Weight: 3.1 kg
