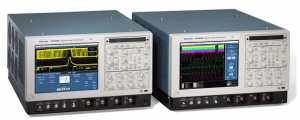

Tektronix Tds6804B Tektronix Tds6804B 4 Ch 8 Ghz Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Tds6804B is a state-of-the-art 4-channel, 8 GHz digital oscilloscope manufactured by Tektronix, a renowned brand known for its high-quality test and measurement instruments. With its impressive bandwidth and advanced features, the Tds6804B is designed to meet the demands of engineers and scientists working on complex electronic systems. It offers a high sampling rate, allowing users to capture and analyze fast-changing signals accurately. The oscilloscope’s four channels provide flexibility in monitoring multiple signals simultaneously, enabling efficient troubleshooting and analysis. Additionally, the Tds6804B comes equipped with an intuitive user interface and a wide range of measurement and analysis functions, making it a valuable tool for various applications, including telecommunications, aerospace, and research and development. Overall, the Tektronix Tds6804B is a powerful and reliable oscilloscope that delivers exceptional performance and precision for professionals in need of precise signal analysis.
Specifications
– Model: Tektronix Tds6804B
– Number of Channels: 4
– Bandwidth: 8 GHz
– Sample Rate: 20 GS/s
– Vertical Resolution: 8 bits
– Maximum Record Length: 32 Mpts
– Display: 10.4-inch color TFT
– Input Impedance: 50 Ohms
– Input Coupling: AC, DC, GND
– Trigger Types: Edge, Glitch, Width, Runt, Pattern, State, Video, Serial, Delay, Event, Timeout
– Trigger Modes: Auto, Normal, Single Sequence, Stop
– Waveform Measurements: Amplitude, Frequency, Period, Rise Time, Fall Time, Delay, Duty Cycle, Phase, RMS, Peak-to-Peak, etc.
– Connectivity: USB, LAN, GPIB
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 17.4 in x 9.3 in x 13.2 in
– Weight: 30.4 lbs
