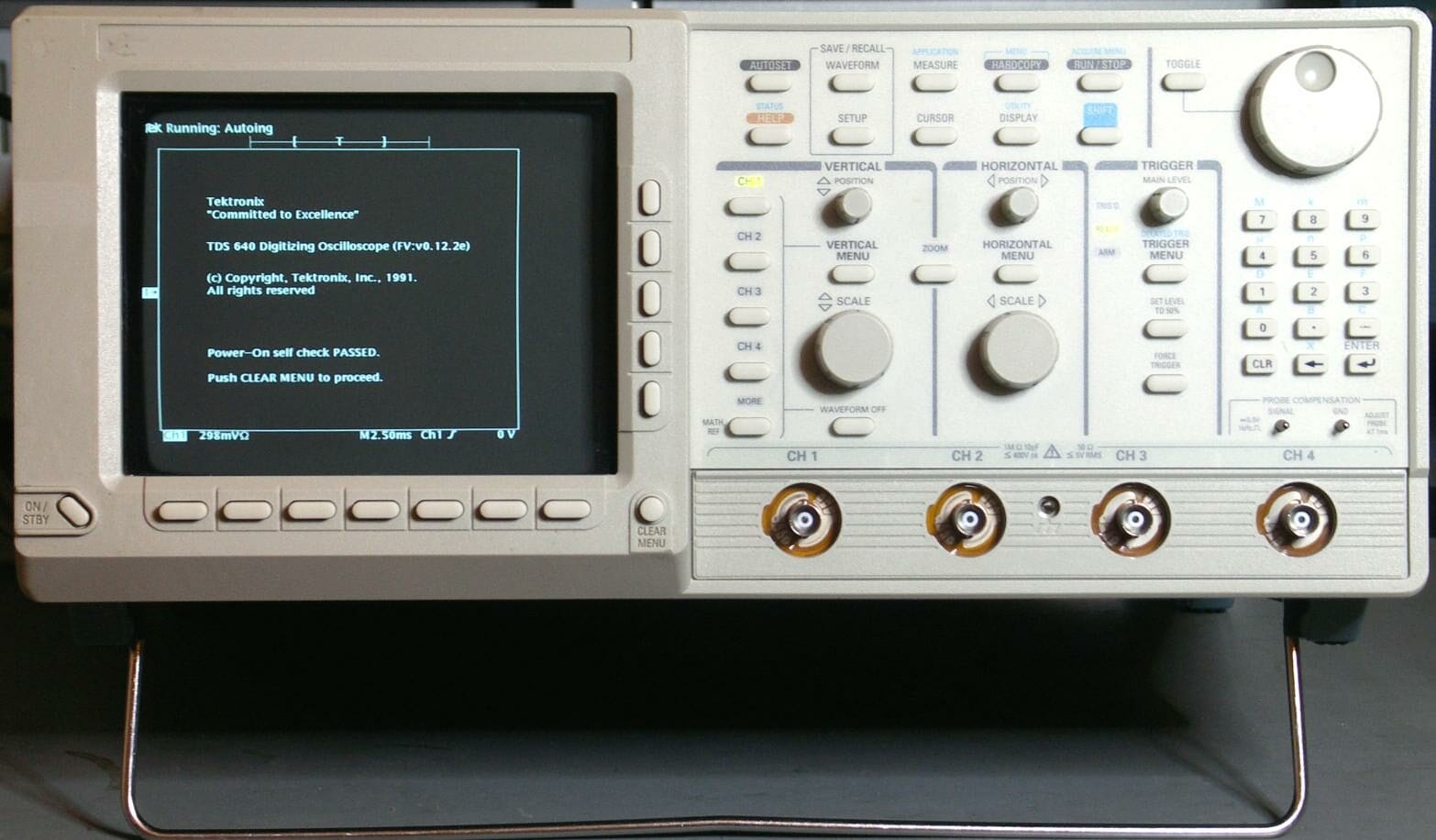

Tektronix Tds640 500 Mhz, 2Gs/S 4-Ch Digitizing Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS640 is a high-performance, 500 MHz, 2Gs/S, 4-channel digitizing oscilloscope that offers exceptional precision and versatility. With its advanced features and capabilities, it is an ideal tool for engineers and technicians working in a wide range of industries such as telecommunications, electronics, and research and development. The TDS640 provides accurate and detailed waveform analysis, allowing users to capture and analyze complex signals with ease. Its four channels enable simultaneous monitoring and comparison of multiple signals, enhancing efficiency and productivity. Additionally, its fast sampling rate ensures accurate measurements of high-frequency signals. Overall, the Tektronix TDS640 is a reliable and powerful instrument that offers comprehensive functionality and exceptional performance for various applications.
Specifications
– Model: Tektronix TDS640
– Bandwidth: 500 MHz
– Sampling Rate: 2 Gs/S
– Channels: 4
– Input Impedance: 1 MΩ || 13 pF
– Vertical Resolution: 8 bits
– Rise Time: < 700 ps
– Maximum Record Length: 10,000 points
– Time Base Range: 500 ps/div to 10 s/div
– Vertical Sensitivity: 2 mV/div to 10 V/div
– Trigger Types: Edge, Pulse Width, Video, Delay, Runt, Logic, Pattern
– Input Coupling: AC, DC, GND
– Display: 6.3-inch color TFT LCD
– Communication Interface: GPIB, RS-232, Centronics
– Power Requirements: 100-240 VAC, 50/60 Hz, 160 W max
– Dimensions (H x W x D): 7.4 x 14.9 x 17.3 inches
– Weight: 33 lbs (15 kg)
