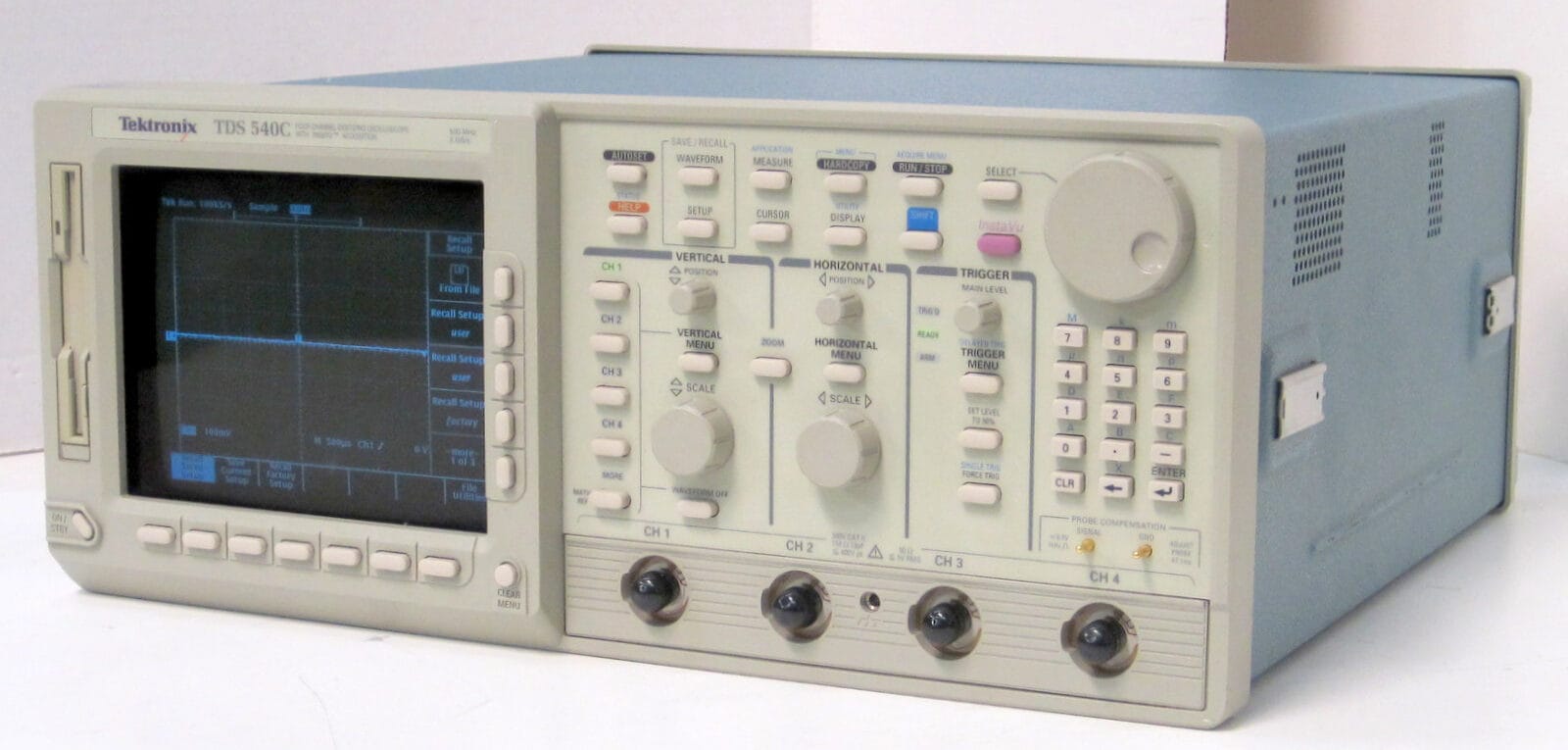

Tektronix Tds540C 500Mhz, 4 Ch, 2Gs/S Digital Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS540C is a high-performance digital oscilloscope designed for precise and accurate waveform analysis. With a bandwidth of 500MHz and four channels, it is capable of capturing and displaying complex signals with ease. The impressive sampling rate of 2Gs/S ensures that no detail is missed, making it suitable for a wide range of applications including telecommunications, electronics, and research and development. The TDS540C features a user-friendly interface with a large color display, allowing for easy navigation and interpretation of waveforms. Additionally, it offers advanced triggering options, math functions, and measurement capabilities, enabling users to perform in-depth analysis on their signals. Overall, the Tektronix TDS540C is a reliable and powerful tool that provides engineers and technicians with the precision and functionality they need for their demanding measurement tasks.
Specifications
– Model: TDS540C
– Bandwidth: 500 MHz
– Channels: 4
– Sampling Rate: 2 GS/s (Giga-Samples per second)
– Vertical Resolution: 8 bits
– Input Impedance: 1 MΩ || 20 pF
– Maximum Input Voltage: 300 Vrms CAT II
– Time Base Range: 500 ps/div to 10 s/div
– Record Length: 1000 points/Ch (single-shot), 10,000 points (repetitive signals)
– Display: 7-inch color CRT display
– Vertical Sensitivity: 2 mV/div to 5 V/div
– Trigger Modes: Auto, Normal, Single sequence
– Trigger Types: Edge, Pulse, Video, Slope, Pattern, Continuous time, and other advanced options
– Cursors and Measurements: Time and Voltage cursors, Automatic measurements (including rise time, frequency, peak-to-peak, etc.)
– Math Functions: Addition, Subtraction, Multiplication, Division, FFT (Fast Fourier Transform)
– Connectivity: GPIB, RS-232, Centronics, VGA, and optional Ethernet
– Weight: Approximately 12 kg (26.5 lbs)
– Dimensions: 425 mm (W) x 175 mm (H) x 450 mm (D)
