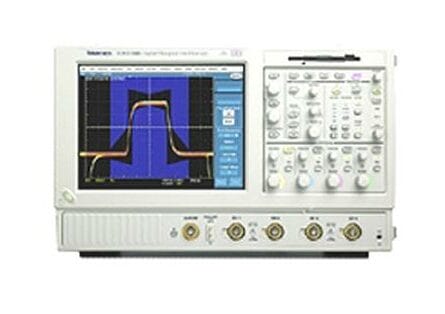

Tektronix Tds5104B Oscilloscope; 1 Ghz, 4 Ch Dpo
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS5104B Oscilloscope is a powerful and versatile instrument that offers high performance and functionality for various applications. With a bandwidth of 1 GHz and 4 channels, it provides accurate and detailed measurements for complex waveforms. The Digital Phosphor Oscilloscope (DPO) technology enables real-time waveform capture and analysis, allowing users to quickly identify and troubleshoot signal anomalies. The large display screen and intuitive user interface make it easy to navigate and interpret data. Additionally, the TDS5104B offers advanced triggering capabilities, extensive measurement options, and convenient connectivity options for seamless integration into any test environment. Overall, this oscilloscope is a reliable and efficient tool for engineers and technicians working in research, development, and production environments.
Specifications
– Bandwidth: 1 GHz
– Channels: 4
– Digital phosphor oscilloscope (DPO) technology
– Sample rate: 5 GS/s
– Record length: 8 M points
– Vertical resolution: 8 bits
– Maximum input voltage: 300 Vrms CAT II
– Rise time: <350 ps
– Trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Pattern, State, Delay, and Event
– Input coupling: AC, DC, GND
– Input impedance: 1 MΩ || 13 pF
– Maximum input voltage: 300 Vrms CAT II
– Display: 10.4″ color TFT LCD
– Interfaces: USB, Ethernet, GPIB
– Built-in math functions: FFT, integration, differentiation, square root, exponentiation, logarithm, etc.
– Waveform capture rate: up to 25,000 wfm/s
– Advanced triggering and analysis capabilities
– Dimensions: 426 mm x 168 mm x 398 mm (16.8″ x 6.6″ x 15.7″)
– Weight: 7.1 kg (15.6 lbs)
