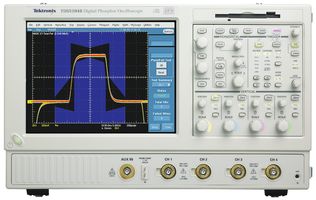

Tektronix Tds5054B Oscilloscope; 500 Mhz, 4 Ch Dpo
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS5054B Oscilloscope is a powerful and versatile tool for electronic engineers and technicians. With a bandwidth of 500 MHz and four channels, it offers accurate and detailed waveform analysis for a wide range of applications. The DPO (Digital Phosphor Oscilloscope) technology provides real-time capture of signals, enabling users to quickly identify and troubleshoot issues. The TDS5054B also features a large display and intuitive user interface, making it easy to navigate and interpret waveforms. Whether for research, development, or testing purposes, this oscilloscope offers excellent performance and reliability.
Specifications
– Model: Tektronix Tds5054B
– Bandwidth: 500 MHz
– Channels: 4
– Digital Phosphor Oscilloscope (DPO) technology
– Vertical resolution: 8 bits
– Sample rate: 5 GS/s
– Record length: 10 Mpts
– Maximum real-time capture rate: 100,000 waveforms per second
– Display: 9-inch color TFT-LCD
– Built-in floppy disk drive for data storage
– USB and LAN connectivity options for data transfer and remote control
– Advanced triggering capabilities including edge, pulse width, runt, and video
– Math functions: add, subtract, multiply, and divide waveforms
– FFT analysis with up to 1M points
– Automated measurements for various parameters such as voltage, frequency, rise time, and duty cycle
– Waveform math and measurements on the fly
– Built-in help system for easy operation and troubleshooting.
