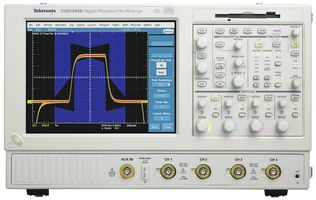

Tektronix Tds5034B Oscilloscope; 350 Mhz, 4 Ch Dpo
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS5034B Oscilloscope is a powerful and versatile device that offers a range of features to meet the needs of professionals in various industries. With a bandwidth of 350 MHz and four channels, this oscilloscope provides accurate and detailed waveform analysis. Equipped with Digital Phosphor Technology (DPO), it captures and displays signals in real-time, allowing users to quickly identify and troubleshoot issues. The TDS5034B also offers a large and high-resolution display, making it easy to view and analyze waveforms with precision. With its advanced functionality and reliable performance, the Tektronix TDS5034B is an excellent choice for engineers, technicians, and researchers working on complex electronic systems.
Specifications
– Model: Tektronix Tds5034B
– Oscilloscope type: DPO (Digital Phosphor Oscilloscope)
– Bandwidth: 350 MHz
– Number of channels: 4
– Sample rate: up to 5 GS/s (Giga-Samples per second)
– Record length: up to 16 Mpts (Mega-points)
– Vertical resolution: 8 bits
– Rise time: < 1.1 ns
– Display: 9-inch color TFT (Thin Film Transistor) LCD
– Input impedance: 1 MΩ || 14 pF
– Input voltage range: 2 mV/div to 10 V/div
– Time base range: 1 ns/div to 1000 s/div
– Trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Pattern, Sequence, Video
– Connectivity: USB, LAN, GPIB (General Purpose Interface Bus)
– Dimensions: 17.3 in (W) x 9 in (H) x 5.8 in (D)
– Weight: 13.4 lbs
TEKTRONIX TDS5034B is also available with the following specs and model:
- Oscilloscope Digital Phosphor 350 MHz 5 GS/s Chs 4
