Tektronix Tds420A 200Mhz, 4 Channel, 100Ms/S Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

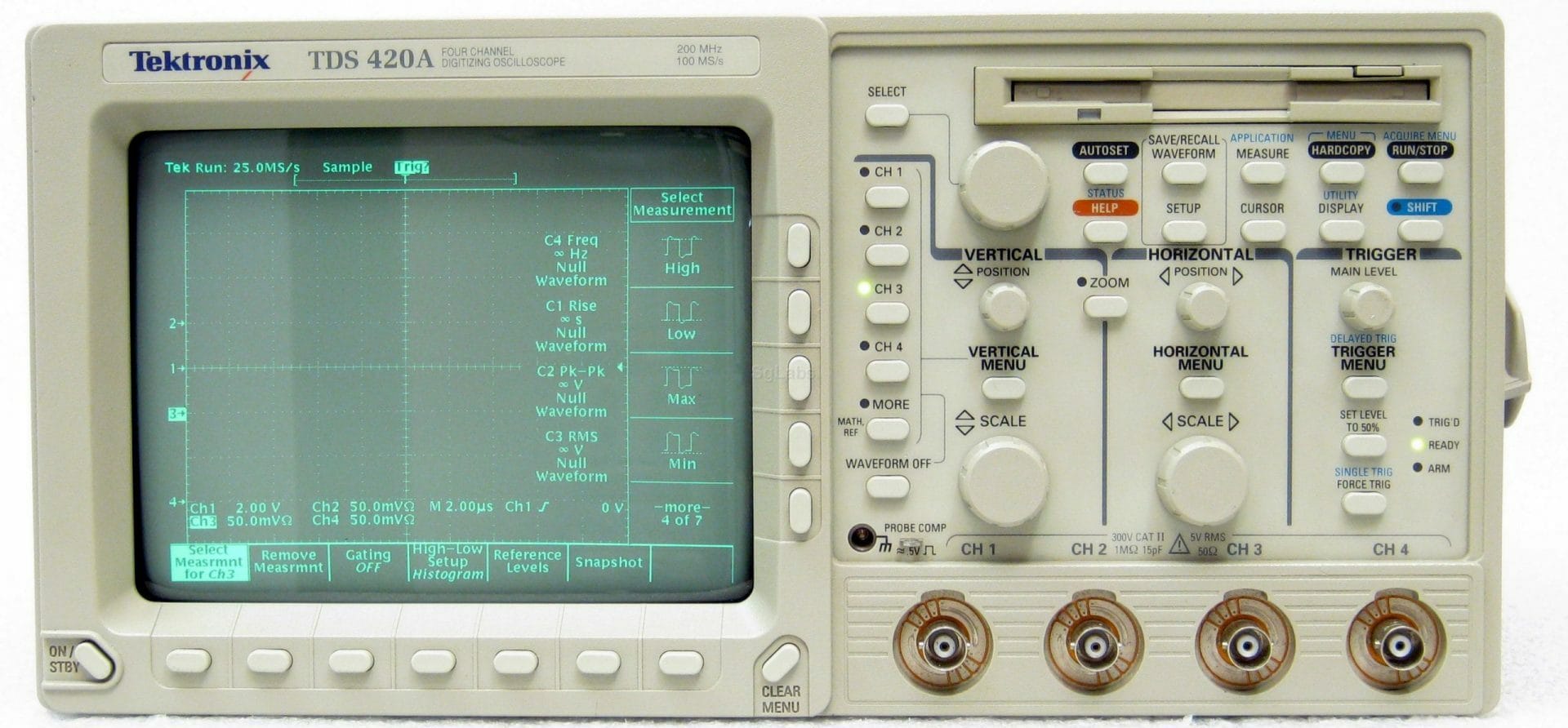

The Tektronix Tds420A 200Mhz, 4 Channel, 100Ms/S Oscilloscope is a powerful and versatile instrument used for measuring and analyzing electronic signals. With a bandwidth of 200Mhz, it is capable of accurately capturing high-frequency waveforms. The oscilloscope features four channels, allowing simultaneous measurement of multiple signals. With a sampling rate of 100Ms/S, it ensures precise and detailed waveform acquisition. The Tds420A offers a user-friendly interface with a large display, making it easy to navigate and interpret the captured data. It is an essential tool for engineers, technicians, and researchers working in various fields such as electronics, telecommunications, and automotive industries.
Specifications
– Model: Tektronix Tds420A
– Bandwidth: 200MHz
– Channels: 4
– Sampling Rate: 100Ms/S (mega-samples per second)
– Vertical Resolution: 8 bits
– Maximum Record Length: 2.5k points per channel
– Input Coupling: AC, DC, GND
– Input Impedance: 1MΩ || 13pF
– Maximum Input Voltage: 300V RMS CAT II
– Trigger Types: Edge, Pulse Width, Video, Pattern, State, Delayed, TV Line
– Trigger Modes: Auto, Normal, Single Sequence, Single Sequence Auto
– Display Type: Color CRT
– Display Size: 6.3 inches (16 cm)
– Waveform Measurements: Amplitude, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle, Phase
– Cursors: Voltage, Time, Track
– Connectivity: GPIB, RS-232, Centronics, VGA
– Weight: Approximately 6.8 kg (15 lbs)
– Dimensions: 350 mm x 149 mm x 355 mm (13.8 in x 5.9 in x 14 in)
