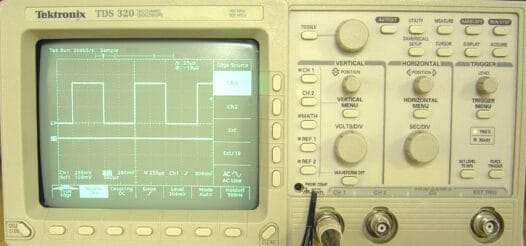

Tektronix Tds320 2Ch, 500Ms/S, 100Mhz Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix Tds320 2Ch, 500Ms/S, 100Mhz Oscilloscope is a high-performance instrument designed for precise measurement and analysis of electrical signals. With its two channels, it allows users to capture and analyze two signals simultaneously, providing a comprehensive understanding of the system under observation. The oscilloscope offers a sampling rate of 500Ms/S, ensuring accurate representation of fast-changing waveforms. Its 100Mhz bandwidth enables the capture of high-frequency signals with clarity and precision. The Tektronix Tds320 is equipped with advanced features and functions, such as automatic measurements, waveform math operations, and versatile triggering options, making it suitable for various applications, including electronics troubleshooting, circuit analysis, and research and development.
Specifications
– Model: Tektronix Tds320
– Number of Channels: 2
– Sampling Rate: 500 Mega-samples per second (Ms/S)
– Bandwidth: 100 Megahertz (MHz)
– Input Impedance: 1 Megaohm (MΩ)
– Vertical Resolution: 8 bits
– Display: 6.4-inch color TFT LCD
– Maximum Record Length: 15,000 points per channel
– Vertical Sensitivity: 2 mV/div to 5 V/div
– Time Base Range: 5 ns/div to 5 s/div
– Triggering Modes: Edge, Pulse, Video, and Alternate
– Input Coupling: DC, AC, GND
– Input Voltage Range: 400 V (DC + AC peak)
– Waveform Math Functions: Add, Subtract, Multiply, and Divide
– Automatic Measurements: Peak-to-Peak, Mean, RMS, Frequency, etc.
– Connectivity: RS-232, GPIB, and Centronics Printer Port
– Weight: Approximately 7.5 kg (16.5 lbs)
– Dimensions: 335 mm x 155 mm x 405 mm (13.2 in x 6.1 in x 15.9 in)
– Power Supply: 100-240 VAC, 45-66 Hz, 60 W
