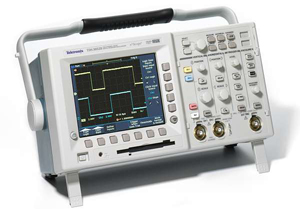

Tektronix Tds3052B Tektronix
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS3052B is a highly advanced and versatile oscilloscope manufactured by Tektronix. It is designed to provide accurate and precise measurements of electrical signals in various applications. With a bandwidth of 500 MHz and a maximum sample rate of 5 GS/s, this oscilloscope offers high performance and excellent signal fidelity. It features a large color display that provides clear and detailed waveform representations, making it easy to analyze and interpret complex signals. The TDS3052B also includes a variety of advanced triggering options, mathematical functions, and analysis tools, enabling engineers and technicians to thoroughly investigate and troubleshoot electrical circuits and systems. Overall, the Tektronix TDS3052B is a reliable and powerful instrument that is widely used in the electronics industry for its exceptional performance and functionality.
Specifications
– Bandwidth: 500 MHz
– Rise time: ≤700 ps
– Sample rate: 5 GS/s
– Record length: 10,000 points per channel
– Vertical resolution: 8-bit
– Input impedance: 1 MΩ || 13 pF
– Maximum input voltage: 300 Vrms CAT II
– Channels: 2
– Input coupling: DC, AC, GND
– Trigger types: Edge, Pulse Width, Video, Runt, Logic, Pattern, State, Delay, Setup/Hold, Window, Qualified, Serial
– Display: 9-inch color TFT LCD
– Connectivity: USB host and device ports, LAN, GPIB (optional)
– Weight: 7.6 kg (16.8 lbs)
– Dimensions: 132 mm x 376 mm x 150 mm (5.2 in x 14.8 in x 5.9 in)
