Tektronix Tds224 100Mhz, 4Ch, 1Gs/S, Digital Real-Time Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description

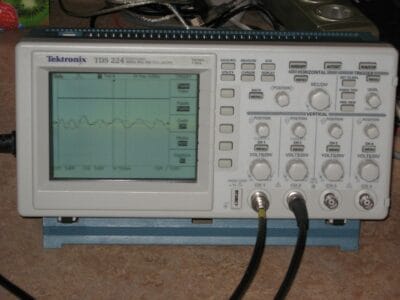

The Tektronix Tds224 is a high-performance digital real-time oscilloscope designed for demanding applications in various fields such as electronics, telecommunications, and research. With its impressive specifications, including a bandwidth of 100MHz, 4 channels, and a sampling rate of 1Gs/S, this oscilloscope offers precise and accurate measurements for waveform analysis. Its real-time sampling capability allows for capturing and analyzing signals quickly and efficiently, providing valuable insights into signal characteristics and behaviors. Equipped with advanced features like waveform math and advanced triggering options, the Tds224 enables users to perform complex measurements and analysis with ease. Its user-friendly interface and intuitive controls make it suitable for both beginners and experienced professionals. Overall, the Tektronix Tds224 is a powerful and reliable tool that delivers excellent performance and versatility in a wide range of applications.
Specifications
– Model: Tektronix Tds224
– Bandwidth: 100 MHz
– Channels: 4
– Sample Rate: 1 GS/s (Giga Samples per second)
– Real-Time Digital Oscilloscope
– Vertical Resolution: 8 bits
– Vertical Sensitivity Range: 2 mV/div to 10 V/div
– Horizontal Time Base Range: 5 ns/div to 50 s/div
– Maximum Record Length: 2.5 k points per channel
– Trigger Sensitivity: 1 Div from DC to 100 MHz
– Input Coupling: AC, DC, GND
– Input Impedance: 1 MΩ ±2% in parallel with 20 pF ±2 pF
– Maximum Input Voltage: 300 VRMS CAT II, derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
– Display: 6.5-inch color TFT LCD with 640 x 480 pixels resolution
– Power Source: 100-240 V AC, 45-66 Hz, 90 W max
– Weight: 3.6 kg (7.9 lb)
– Dimensions: 127 mm (H) x 325 mm (W) x 405 mm (D)
