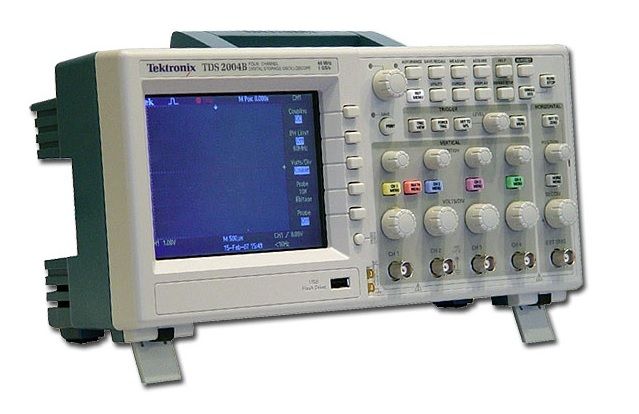

Tektronix TDS2004B Oscilloscopes
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS2004B Oscilloscope is a versatile and reliable instrument that is widely used in the field of electronics. Designed with advanced features and functionalities, this oscilloscope provides accurate and precise measurements of electrical signals. With a bandwidth of 70 MHz and a sample rate of 1 GS/s, it is capable of capturing and displaying complex waveforms with high fidelity. The TDS2004B also offers a large 6.5-inch color display, allowing users to easily analyze and interpret waveform data. Additionally, it provides various triggering options, multiple measurement parameters, and waveform math functions, making it an ideal tool for troubleshooting, design validation, and educational purposes. Overall, the Tektronix TDS2004B Oscilloscope is a reliable and efficient instrument that meets the needs of professionals and enthusiasts in the electronics industry.
Specifications
– Bandwidth: 70 MHz
– Sample Rate: 1 GS/s
– Channels: 4
– Display: 5.7-inch color TFT LCD
– Vertical Resolution: 8 bits
– Horizontal Time Base Range: 5 ns/div to 50 s/div
– Record Length: 2.5 kpts
– Vertical Sensitivity: 2 mV/div to 5 V/div
– Input Impedance: 1 MΩ || 13 pF
– Maximum Input Voltage: 300 V RMS CAT II
– Trigger Modes: Edge, Pulse Width, Video, Slope, Runt, Windows, Timeout, Pattern, and Setup/Hold
– Connectivity: USB 2.0 host/device, Ethernet, GPIB (optional)
– Dimensions: 313 mm (W) x 157 mm (H) x 123 mm (D)
– Weight: 2.2 kg (4.9 lbs)
Tektronix TDS2004B is also available with the following specs and model:
- Oscilloscope – Digital Storage – 60MHz / 1GS/s – Analog – 4ch
