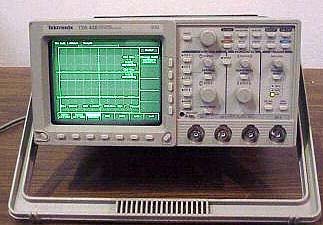

Tektronix Tds 420 150 Mhz, 4 Ch, 100Ms/S, Digitizing Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TDS 420 150 MHz, 4 Ch, 100 MS/s, Digitizing Oscilloscope is a powerful and versatile instrument that is widely used in various fields of engineering and research. With its 150 MHz bandwidth, it can accurately capture and analyze signals with high frequency components. The 4 channels allow for simultaneous measurement of multiple signals, providing a comprehensive view of the system under test. The 100 MS/s digitizing rate ensures precise and detailed waveform acquisition, enabling users to capture and analyze fast-changing signals. The TDS 420’s user-friendly interface and advanced features, such as automatic measurements, waveform math, and signal analysis, make it an efficient tool for analyzing and troubleshooting electronic systems. Overall, the Tektronix TDS 420 is a reliable and high-performance oscilloscope that meets the demanding requirements of professionals in various industries.
Specifications
– Model: Tektronix Tds 420
– Bandwidth: 150 MHz
– Number of Channels: 4
– Sampling Rate: 100 Ms/S (mega-samples per second)
– Input Impedance: 1 MΩ || 20 pF
– Vertical Resolution: 8 bits
– Voltage Range: 1 mV to 10 V/div
– Time Base Range: 500 ps/div to 5 s/div
– Record Length: 2,500 points per channel
– Trigger Modes: Auto, Normal, Single Sequence, and External
– Trigger Types: Edge, Video, Pulse Width, and Pattern
– Display: Monochrome CRT with 7-inch diagonal screen
– Input Coupling: AC, DC, GND
– Input Voltage Range: ±400 V (DC + AC peak)
– Input Maximum Voltage: 400 V (DC + AC peak)
– Input Bandwidth Limit: 20 MHz
– Probes Included: 4 P6137 10X Passive Probes
– Power Supply: 100-240 VAC, 48-440 Hz, 50 VA max
– Dimensions: 360 mm x 144 mm x 410 mm (W x H x D)
– Weight: 7.7 kg
