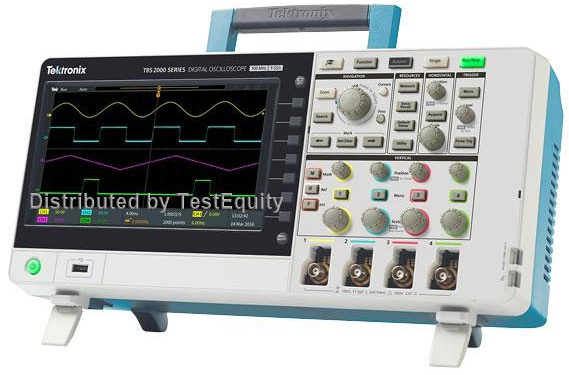

Tektronix TBS2104 Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TBS2104 Oscilloscope is a high-performance instrument that offers a wide range of capabilities for electrical engineers and technicians. With a 100 MHz bandwidth and 4 channels, it provides accurate and reliable measurements of waveforms and signals. The large 9-inch color display ensures clear and detailed waveform visualization, while the intuitive user interface allows for easy navigation and control. The Tbs2104 also includes advanced triggering options, such as edge, pulse width, and video trigger, enabling precise triggering on specific signal characteristics. Additionally, with its built-in USB ports and LAN connectivity, users can easily save and transfer data, as well as remotely control the oscilloscope. Overall, the Tektronix TBS2104 Oscilloscope is a versatile and efficient tool that is essential for any professional working in the field of electronics.
Specifications
– Bandwidth: 100 MHz
– Channels: 4
– Sample Rate: 1 GS/s
– Maximum Record Length: 20M points
– Rise Time: ≤3.5 ns
– Input Impedance: 1 MΩ || 13 pF
– Vertical Sensitivity: 2 mV/div – 5 V/div
– Vertical Resolution: 8 bits
– Horizontal Timebase Range: 1 ns/div – 1000 s/div
– Trigger Types: Edge, Pulse Width, Runt, Video, Slope, Alternative, Pattern, State, Setup/Hold, Window, Dropout, Timeout, Interval, Event Delay
– Input Voltage Range: 300 V RMS CAT II
– Display: 9-inch WVGA TFT-LCD color display
– Connectivity: USB host port, USB device port, LAN (Ethernet) port, HDMI port, Trigger Out port
– Dimensions: 14.5 in x 5.9 in x 7.8 in
– Weight: 8.2 lbs
Tektronix TBS2104 is also available with the following specs and model:
- Oscilloscope – 100MHz / 4channel
