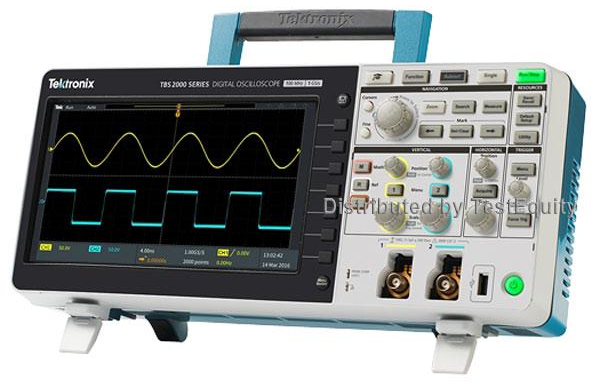

Tektronix TBS2072 Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix TBS2072 Oscilloscope is a versatile and high-performance instrument that is widely used in various industries for electrical signal measurement and analysis. With its 70 MHz bandwidth and 2 channels, it offers accurate and reliable waveform visualization, making it suitable for a wide range of applications such as electronics design, manufacturing, and education. The TBS2072 features a large 9-inch color display that provides excellent waveform visibility and clarity. Its advanced triggering capabilities and extensive measurement options enable users to capture and analyze complex signals with ease. Additionally, the oscilloscope offers intuitive controls and a user-friendly interface, allowing both experienced professionals and beginners to operate it efficiently. Overall, the Tektronix TBS2072 Oscilloscope is a powerful tool that combines performance, versatility, and ease of use, making it an excellent choice for any industry professional or enthusiast in need of reliable signal measurement and analysis.
Specifications
– Bandwidth: 70 MHz
– Channels: 2
– Sample Rate: 2 GS/s
– Record Length: 20 Mpts
– Vertical Sensitivity: 2 mV/div – 10 V/div
– Rise Time: <5 ns
– Input Impedance: 1 MΩ || 13 pF
– Maximum Input Voltage: 300 Vrms CAT II
– Trigger Types: Edge, Pulse Width, Runt, Video, Pulse Width, Timeout, Pattern, Setup/Hold
– Display: 9-inch color WVGA display
– Connectivity: USB host, USB device, LAN, GPIB (optional)
– Dimensions: 190 mm x 350 mm x 130 mm
– Weight: 2.7 kg
