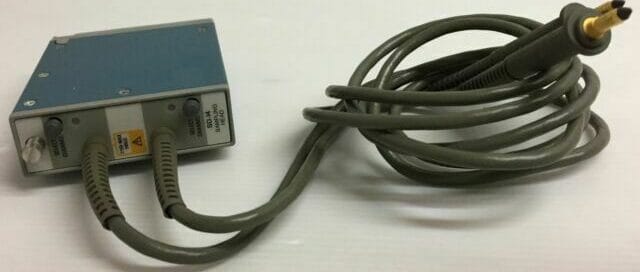

Tektronix SD-14 Oscilloscopes
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix SD-14 Oscilloscopes are advanced electronic measurement devices that offer precise and accurate signal analysis. These oscilloscopes are designed with cutting-edge technology to cater to the needs of engineers, technicians, and scientists in various industries. With a large and high-resolution display, the SD-14 oscilloscopes provide a clear and detailed representation of waveforms, enabling users to analyze and troubleshoot complex electrical signals effectively. These devices also offer advanced features like customizable analysis tools, extensive triggering options, and a wide range of connectivity options for seamless integration with other test equipment or systems. The Tektronix SD-14 Oscilloscopes are a reliable and versatile solution for professionals seeking precise measurements and in-depth analysis of electronic signals.
Specifications
– Bandwidth: 1 GHz
– Sampling rate: 10 GS/s
– Memory depth: 20 Mpts
– Number of input channels: 4
– Vertical resolution: 8 bits
– Rise time (10% to 90%): <350 ps
– Input impedance: 1 MΩ // 16 pF
– Maximum input voltage: 300 Vrms, CAT II
– Trigger types: Edge, Pulse Width, Runt, Timeout, Transition, Setup/Hold, Window, Logic, Pattern, State, Delay, Video, Serial, FlexRay, CAN, LIN, I²C, SPI, USB, Ethernet, MIL-STD-1553, ARINC 429
– Display: 12.1-inch TFT color touchscreen
– Connectivity: USB, LAN, GPIB (optional)
– Power supply: 100-240 VAC, 50/60 Hz
Tektronix SD-14 is also available with the following specs and model:
- Sampling Head – 3 GHz – SD14
