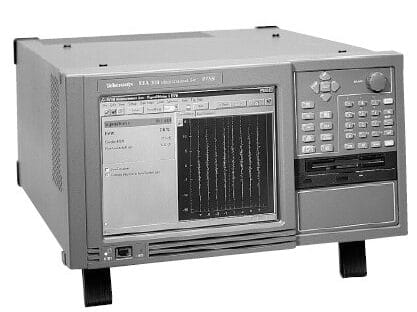

Tektronix RFA300A Test Set
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix RFA300A provides fast, easy and efficient solutions for 8VSB RF measurement needs while delivering the measurement accuracy and ease of use you’ve come to expect from Tektronix. The range of capabilities offered by the RFA300A includes all measurement functions required to install, operate and maintain an 8VSB transmitter. The RFA300A brings the heritage of the Tektronix VM700 to RF measurements for 8VSB DTV transmitters. The RFA300A provides a suite of measurements that permit the user to examine or measure important DTV parameters including constellation, eye diagram, peak to average power ratio, linear errors and non-linear distortion. Measurement displays provide numeric data augmented with easy to interpret graphics which allow the operator to visually determine operational performance of the transmitter. The RFA300A can measure individual operating parameters or provide continuous monitoring of
transmitter operation with notification if user-selectable limits are violated.
Specifications
– Frequency Range: 10 kHz to 3 GHz
– Dynamic Range: 100 dB
– Measurement Accuracy: ±0.5 dB
– Input Impedance: 50 ohms
– RF Input Power Range: -127 dBm to +20 dBm
– RF Output Power Range: -30 dBm to +10 dBm
– Sweep Time: 10 ms to 1800 s
– Resolution Bandwidth: 1 Hz to 3 MHz
– Video Bandwidth: 10 Hz to 3 MHz
– Display: 7-inch color TFT LCD
– Connectors: RF Input/Output (N-type), USB, Ethernet, GPIB
– Power Requirements: 100-240 VAC, 50/60 Hz, 60 W
– Dimensions: 320 mm x 130 mm x 380 mm
– Weight: 5.5 kg
