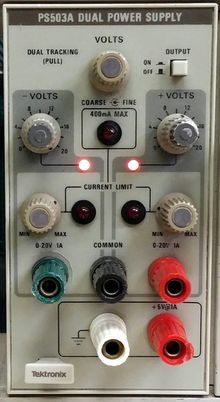

Tektronix PS503A Power Supply
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Tektronix PS503A Power Supply is a versatile and reliable instrument used in various electronic and laboratory applications. With its dual-channel capability, it provides precise and stable DC voltage outputs, ranging from 0 to 35 volts, and current outputs up to 1.5 amps per channel. The power supply features a built-in digital display that allows for accurate monitoring and adjustment of voltage and current levels. It also offers excellent load regulation and low ripple and noise performance, ensuring optimal power delivery to connected devices. The PS503A is known for its durability and ease of use, making it a popular choice among professionals and hobbyists alike.
Specifications
– Model: Tektronix PS503A
– Output Voltage Range: 0 to 20 V
– Output Current Range: 0 to 2 A
– Voltage Accuracy: ±(0.1% of setting + 0.5% of full scale)
– Current Accuracy: ±(0.2% of setting + 0.2% of full scale)
– Ripple & Noise: < 1 mV RMS
– Load Regulation: < 0.01% + 2 mV
– Line Regulation: < 0.01% + 2 mV
– Display: 3-digit LED display
– Protection: Overload and short circuit protection
– Dimensions: 213 mm (H) x 213 mm (W) x 457 mm (D)
– Weight: 7.3 kg
Tektronix PS503A is also available with the following specs and model:
- Power Supply Provides 0 to 20V at 400mA (1A in high power compartment) and +5V at 1A Independent + and – controls or dual tracking voltage control.
