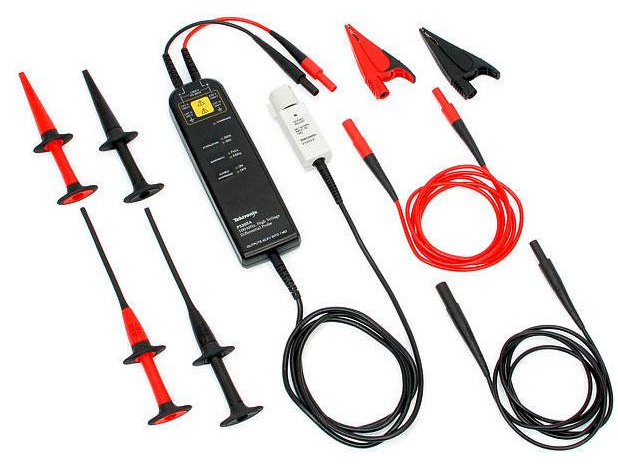

Tektronix P5205A Accessories
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix P5205A Accessories offer a range of useful additions to enhance the functionality and versatility of the P5205A high-voltage differential probe. These accessories are designed to provide users with added convenience and flexibility while ensuring accurate and reliable measurements. One of the notable accessories is the probe adapter, which allows users to easily connect the P5205A to various types of oscilloscopes, expanding its compatibility. Another useful accessory is the probe tip kit, which includes different types of tips to accommodate various measurement scenarios. Additionally, Tektronix offers a range of replacement parts and cables to ensure the longevity and optimal performance of the P5205A. Overall, the Tektronix P5205A Accessories provide users with the necessary tools to maximize the capabilities of the P5205A and achieve precise and efficient measurements in a variety of high-voltage applications.
Specifications
– Probe type: Active differential probe
– Bandwidth: DC to 100 MHz
– Attenuation ratio: 50:1
– Input voltage range: ± 30 V
– Common mode rejection ratio (CMRR): > 40 dB at 500 kHz
– Maximum input voltage: ± 400 V (DC + peak AC)
– Input impedance: 1 MΩ in parallel with 32 pF
– Output voltage range: ± 1 V
– Output impedance: 50 Ω
– Power requirements: Powered by the oscilloscope it is connected to
– Connector type: BNC
– Cable length: 1.5 m (5 ft)
– Dimensions: 186 mm x 38 mm x 21 mm
– Weight: 114 g (4 oz)
Tektronix P5205A is also available with the following specs and model:
- Probe HV 50X/500X 100 MHz Differential 10 Megaohm 2 pF Ground 5 Megaohm4 pF 1000 V CAT II
