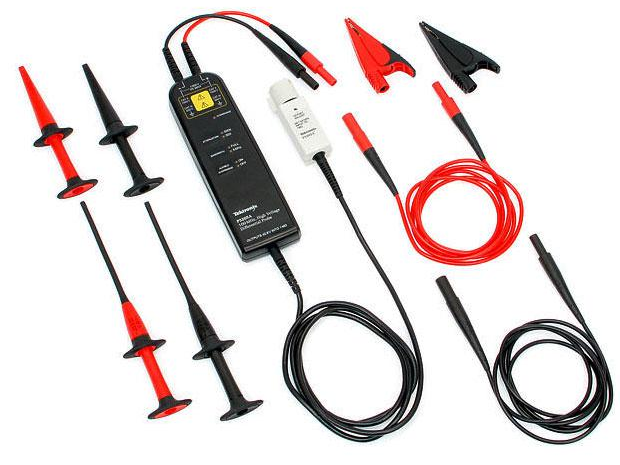

Tektronix P5200A Accessories
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
Tektronix P5200A Accessories are designed to enhance the functionality and performance of the Tektronix P5200A high-voltage differential probe. These accessories are specifically engineered to provide users with a seamless and efficient experience while using the probe. The range of accessories includes various adapters, connectors, and cables that are compatible with the P5200A probe, ensuring a reliable and accurate signal acquisition. These accessories are meticulously crafted to meet the high standards set by Tektronix, guaranteeing optimal performance and durability. Whether it’s for professional use in laboratories or educational purposes in classrooms, Tektronix P5200A Accessories provide users with the necessary tools to maximize the potential of the P5200A probe.
Specifications
– 10:1 and 100:1 attenuation ratio options
– Bandwidth: DC to 50 MHz (-3 dB)
– Input impedance: 10 MΩ // 12 pF (10:1) or 100 MΩ // 1.2 pF (100:1)
– Input voltage range: ±130 V (10:1) or ±1300 V (100:1)
– Maximum differential voltage: ±1300 V (10:1) or ±13,000 V (100:1)
– Maximum common-mode voltage: ±1300 V (10:1) or ±13,000 V (100:1)
– Maximum offset voltage: ±1300 V (10:1) or ±13,000 V (100:1)
– Rise time: ≤7 ns (10:1) or ≤3.5 ns (100:1)
– Maximum input voltage in CAT I: 600 V (10:1) or 6000 V (100:1)
– Output voltage range: ±13 V (10:1) or ±13 V (100:1)
– Output resistance: 10 Ω (10:1) or 100 Ω (100:1)
– Cable length: 1.2 m (4 ft)
Tektronix P5200A is also available with the following specs and model:
- Probe – HV Differential 50X/500X 50MHz – Input Impedance 10Megaohm 2pF Ground 5Megaohm 4pF – 1000V CAT II
